Jinan Longhao Hydraulic Machinery Co., Ltd.

Year Established:2013

Business Type:Manufacturer, Trading Company

Management Certifiation:

Contact Supplier Visit Minisite

More from this Supplier

4-18.0 M light weight electrical type mobile hydraulic aluminum lift table

4-18.0 M light weight electrical type mobile hydraulic aluminum lift table

 SJY0.3-4 Longhao warehouse used small car electric scissor lift table

SJY0.3-4 Longhao warehouse used small car electric scissor lift table

 longhao widely used in floor stationary scissor lift China best lift tables

longhao widely used in floor stationary scissor lift China best lift tables

 LHSJD0.5-4.5 Series small cargo lift for ground floor to first floor

LHSJD0.5-4.5 Series small cargo lift for ground floor to first floor

 GTZ Self Propelled Diesel Power articulated boom lift for sale

GTZ Self Propelled Diesel Power articulated boom lift for sale

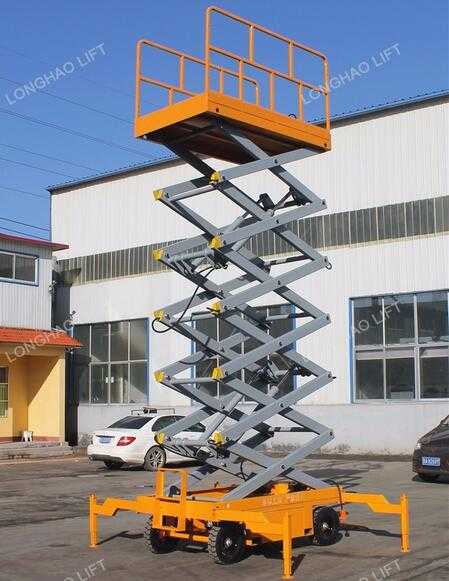

  • LHSJYO0.3-4 18 m electric mobile electric hydraulic scissor lift

LHSJYO0.3-4 18 m electric mobile electric hydraulic scissor lift

Name: electric scissor lift; Material: High-duty Steel Structure; Voltage: 110v 220v 240v 380v Optional; Feature: Easy Operation Safety Convenience;
Send Inquiry  Add to My Favorites

Product Details

Quick Details

Description

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: LONGHAO
  • Model Number: LHSJYO0.3-4
  • Lift Mechanism: Scissor Lift
  • Lift Drive / Actuation: Hydraulic
  • Power: 2.2kw
  • Rated Loading Capacity: 300 kg-500 kg
  • Min. Lifting Height: 730mm
  • Max. Lifting Height: 18m
  • Table Size: 1650*750mm
  • Overall Dimensions: 2100*950*2050mm
  • Weight: 400KG
  • Certification: CE ISO9001
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Lifting speed: 6-9m/min
  • Anti-wind capability: ≤5 level
  • Working pressure:: 16Mpa
  • Surface board: 4mm steel board
  • colour: according to customer need
  • Name: electric scissor lift
  • Material: High-duty Steel Structure
  • Voltage: 110v 220v 240v 380v Optional
  • Feature: Easy Operation Safety Convenience

Name

Spec

Travel

platform size

Capacity

   Power

Mobile scissor lift

LHSJYO0.3-4

4M

1650*750mm

300kg

2.2 KW

Mobile Scissors Table Lift SJY1.0-12 Configuration

1.Max height : 4m

2exportimescheck**exportimes weight : 400kg

3.Lifting speed : 6-9m/min

4.Overall dimension: 2100*950*2050MM

7. Surface board: 4mm steel board

8. Pump station: Germany & China joint venture company.

9. Power: 2.2Kw, Voltage: 24V

10. Electrical parts: Delixi Brand

11. O-Ring: Valqua, Japan

12. Bearing: SF-1 auto-lubricating bearing without lube.

13. Control mode: Electric control by control cabinet and hand control panel.

14. Cylinder: Wearable fine cylinder with double O-ring,

Jinan Jufeng Hydraulic Cylinder Co., Ltd.

15. Hydraulic oil pipe: High pressure double steel net rubber pipe,

Shenyang No. 4 Rubber Co., Ltd

16. Hydraulic oil: 32# wearable hydraulic oil, The Grate Wall brand.

17 . Package: Standard export wooden package.



LHSJYO0.3-4 18 m electric mobile electric hydraulic scissor lift

Company Profile

inan Longhao Hydraulic Machinery Co., Ltd was founded in early 2008 and the registered capital was 20.00 million. We are professional domestic hydraulic lift manufacturer, keep contract and credit enterprise and consumer satisfaction unit, Our factory is China lift platform country recommended brand. Since its establishment, has always been the spirit of "Make trustful brand, make Longhao hundred years" and "Make the best only, make the most effective lifter in the world" as the goal, focus on the development of lifting operation platform, elevator research and development, overcome difficulties, in the industry in the rapid growth and development, accumulated rich experience in production technology, and has a advanced and perfect domestic trade and foreign trade sales, technical and after-sales service team, to provide quality and thoughtful professional services for our customers.
Our main product include mobile scissor lift platform, scissor type hydraulic cargo lift platform , hydraulic loading platform , hydraulic lift stage , stationary hydraulic dock leveler , mobile hydraulic dock leveler , telescopic cylinder lifting platform ,aluminum alloy lifting platform , Vehicle mounted hydraulic lifting platform, Vehicle mounted articulated aerial working platform , self-propelled hydraulic lift and The national leading technical level and production technology of guide rail hydraulic cargo lift , which are widely used in aerial operation and transportation of the cargo between layers on the production line such as building inner fitting up, workshop, stations & port ,supermarket lobby ******pany product covered Health, sanitation, factories and mines, education, scientific research, such as lifting the industry more than 20 kinds of varieties of specifications of the products Can fully meet the various needs of the different customer team on the lifting platform, breaking the foreign hydraulic lifts technical monopoly, and seeks to win wide popularity and influence in the international arena.
