Quick Details
Description
Specifications:

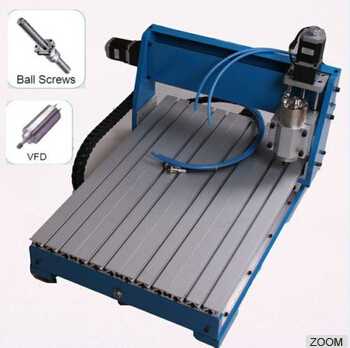

This is a compact, high precision machining, is ideal for processing small items of mini cnc engraving machine
1exportimescheck**exportimesC advertising models for the table, working reposeful, accurate models than models with fixed gantry high accuracy.
2.X axis adopts imported popular dust proof structure to make the machine work for al ong time.
3.The models are suitable for architectural model,schools,enterprise,and governments.
4.Adopt advanced CNC system (NCstudio or DSP control system), This system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation.configured with practical and easily –learned software , can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor.
|
Machine Features:
1) Small body, takes just little space
2) Popular in arts&crafts industry
3) Germany NEFF ball screw for X Y Z axis
4) Cheap price
|
|
Technical Parameters:
|
|
Model NO.
|
RD-3030 Small CNC Router
|
|
Table Size(mm)
|
440mm*540mm
|
|
X Y Z Traveling Area
|
300*300*120mm
|
|
Table Structure
|
Aluminum T-Slot
|
|
X Y Z Transmission
|
Germany NEFF Ball Screws
|
|
X Y Z Guide Rail
|
Round Rail
|
|
Spindle Power
|
0.8KW/1.5KW optional
|
|
Max. Spindle Speed
|
24000 r/mm
|
|
Max. Traveling Speed
|
7200 mm/min
|
|
Max. Working Speed
|
5000 mm/min
|
|
Processing Accuracy
|
±0.025mm
|
|
Reposition Accuracy
|
≤0.025mm
|
|
Driving System
|
Stepper Motor
|
|
Command Language
|
HPGL, G Code
|
|
Operation System
|
NCSTUDIO
|
|
Working Voltage
|
AC220V 50Hz
|
|
Net Weight/Gross Weight
|
70KGS / 120KGS
|
|
Applicable Materials:
It is widely used in processing metal(aluminum, brass, stainless steel), wood, acrylic, dual color board, plastic, stone, glass as well as many other nonmetal
materials, and can do perfect 2D/3D carving or cutting
|
Applications:
wood,jade, copper, aluminum, iron and other soft metal materials, building models, identify industry,
schools, enterprises and institutions
Jinan Rongding Cnc Machinery Co., Ltd. is a professional manufacturer of CNC routers and laser cutting machines. Every set of our products is guaranteed by ISO2000 scientific quality control system. All of our products are CE and UL qualified. Our products are exported to the USA, Germany, Britain, Canada, Australia, Russia, and Southeast Asia. Our selling agents spread in more than 70 countries and regions. Our company is developing more rapidly than other laser engraving machine and CNC router manufacturers and exporters in China. We have about 150 workers.
We use the best quality equipment for CNC routers, such as Italian HSD air cooling spindles, Delta inverters, Germany Becker vacuum pumps, Hiwin rail linear bearings and Bakelite for vacuum tables.
Our company is a main supplier of medium-advanced sets of CNC routers in Jinan. We offer customers: wood working machines, advertising CNC machines, marble engraving machines, laser engraving machines, laser cutting machines, marble laser engravers, cloth/fabric laser cutters and engravers, die board/wood laser cutters, metal laser cutters, glass laser engravers, laser marking machines, plasma cutting machines, industrial plasma machines and CNC plasma cutting machines.
High quality is our eternal pursuit. "Customer first, the credibility first" is our consistent pursuit with supreme faith. We have a complete service network and a top-grade service team. Our service ways and means are Omni-directional, multi-level and high-efficiency, which guarantee the effective and reliable responses to customers in the shortest time. By the way, we can also offer technological teaching to operate CNC routers and laser cutting machines if needed. Now, let our products say for us.
