- Model NO.: JBK3-40
- Core: Toroidal
- Winding Type: Two-winding Transformer
- Usage: Single-phase Transformer, Rectifier Transformer, Distribution Transformer
- Shape of Core: U
- Transport Package: Wooden Box
- Application: Power, Electronic, Instrument
- Cooling Method: Dry-type Transformer
- Certification: Ce
- Frequency Characteristics: Power Frequency
- Brand: Fujoe
- HS Code: 8504220000
Specifications:

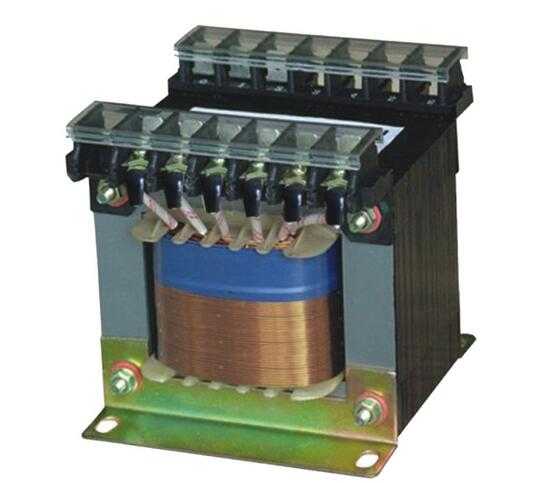

BK Control transformer
Full load temperature rise no more 85 degree
Warranty:1year
10 years experience
CE FCC ISO9001:2008
Application:
BK(DK) Series control transformer(Hereafter call transformer) is suitable for circuit of 50~60Hz, voltage up to 500V, usually applied as power supply for machine tool electrical appliances, locallightings and indicator lamps power supply.
Structure Character:
According to different structures, BK transformer belongs to shell type, and according to the installation mode, it belongs to vertical type.
Model Means:
BK-x DK-x
B:Transformer D: Single Phase
K: Control K: Control
x: Rated Capacity x: Rated Capacity
Working Enviconment:
1.Ambient air temperature: -5 degree ~+45 degree , the highest monthly mean temperature should not exceed +30°C;
2.Altitude for installing place should not exceed 1000m;
3.When the ambient air temperature is +40°C, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is + 25°C, and condensation on the product surface caused bytemperature change should be taken into consideration.
|
Type
|
Rated power (VA)
|
Rated input voltage(V)
|
Rated output voltage(V)
|
|
JBK3-40
|
40
|
Control
|
illumination
|
indication
|
|
JBK3-63
|
63
|
400/380±5%
|
220/110(127)
|
24(36)
|
6(12)
|
|
JBK3-100
|
100
|
|
JBK3-160
|
160
|
|
JBK3-250
|
250
|
|
JBK3-400
|
400
|
|
JBK3-630
|
630
|
|
JBK3-800
|
800
|
|
JBK3-1000
|
1000
|
|
JBK3-1600
|
1600
|
Distribution of capacity for different windings
|
|
JBK3-2500
|
2500
|
should be according to the users requirements
|
|
|
|
|
|
|
|
|
|
|
|
|
Type
|
Rated power (VA)
|
Installing dimensions
|
Outline dimensions
|
Cavity
|
|
A
|
C
|
B
|
D
|
E
|
F
|
K or K×J
|
|
JBK3-40
|
40
|
56±0.5
|
51±2
|
78
|
70
|
86
|
2
|
4.8×9
|
|
JBK3-63
|
63
|
56±0.5
|
51±2
|
78
|
70
|
86
|
2
|
4.8×9
|
|
JBK3-100
|
100
|
64±0.5
|
67±2
|
85
|
85
|
93
|
2
|
4.8×9
|
|
JBK3-160
|
160
|
84±0.5
|
74±2
|
96
|
90
|
103
|
2
|
5.8×11
|
|
JBK3-250
|
250
|
84±0.5
|
88±2
|
96
|
105
|
103
|
2
|
5.8×11
|
|
JBK3-300
|
300
|
84±0.5
|
96±2
|
96
|
115
|
103
|
2
|
5.8×11
|
|
JBK3-400
|
400
|
90±0.5
|
90±2
|
120
|
113
|
123
|
2.5
|
7×13
|
|
JBK3-630
|
630
|
122±0.5
|
86±2
|
150
|
118
|
145
|
2.5
|
7×13
|
|
JBK3-800
|
800
|
122±0.5
|
100±2
|
150
|
128
|
145
|
2.5
|
7×13
|
|
JBK3-1000
|
1000
|
127.5±2
|
152±2
|
155
|
205
|
145
|
3
|
7×12
|
|
JBK3-1600
|
1600
|
140±2
|
176±2
|
180
|
230
|
160
|
3
|
7×12
|
|
JBK3-2500
|
2500
|
173±2
|
200±2
|
205
|
260
|
175
|
4
|
7×12
|
