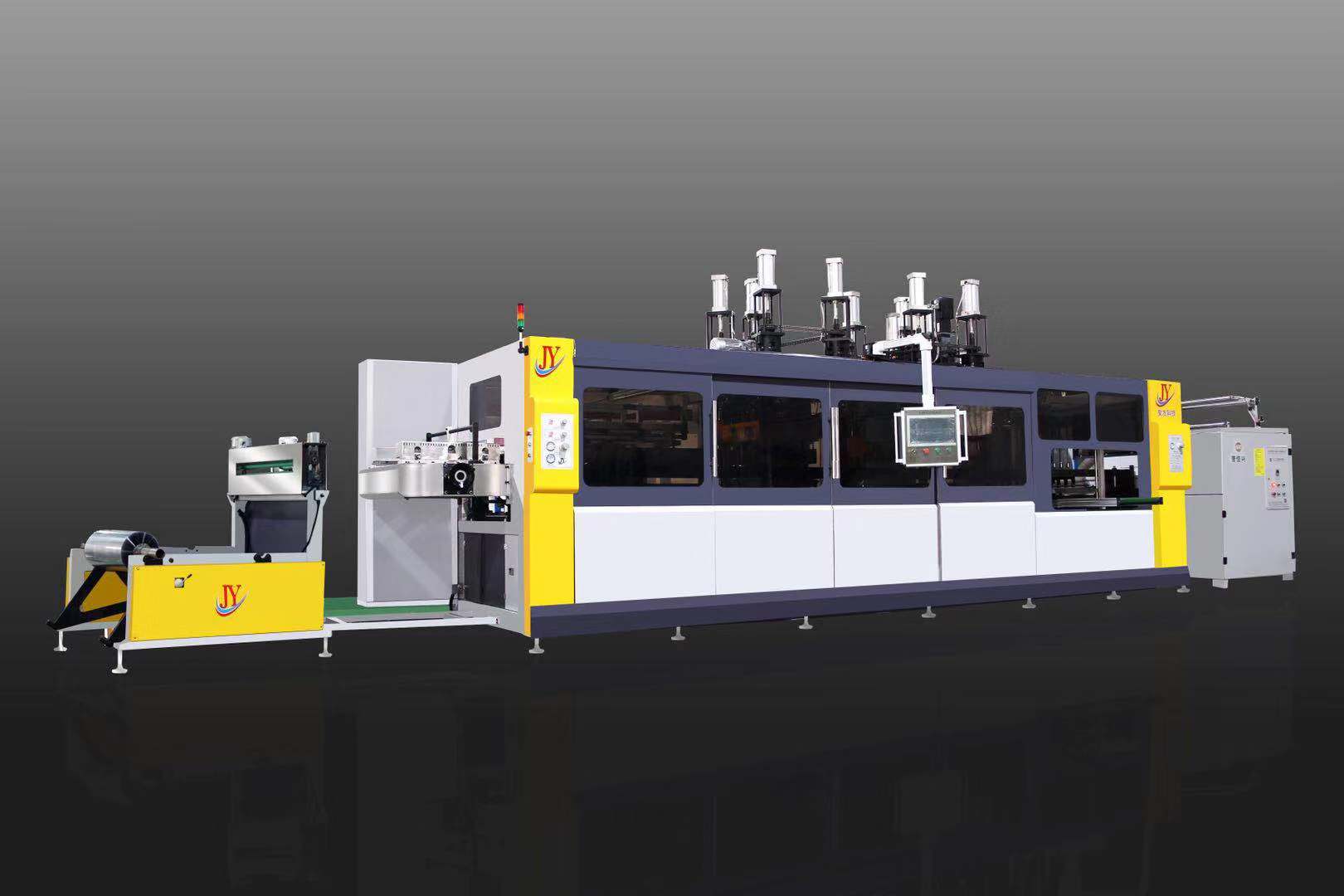

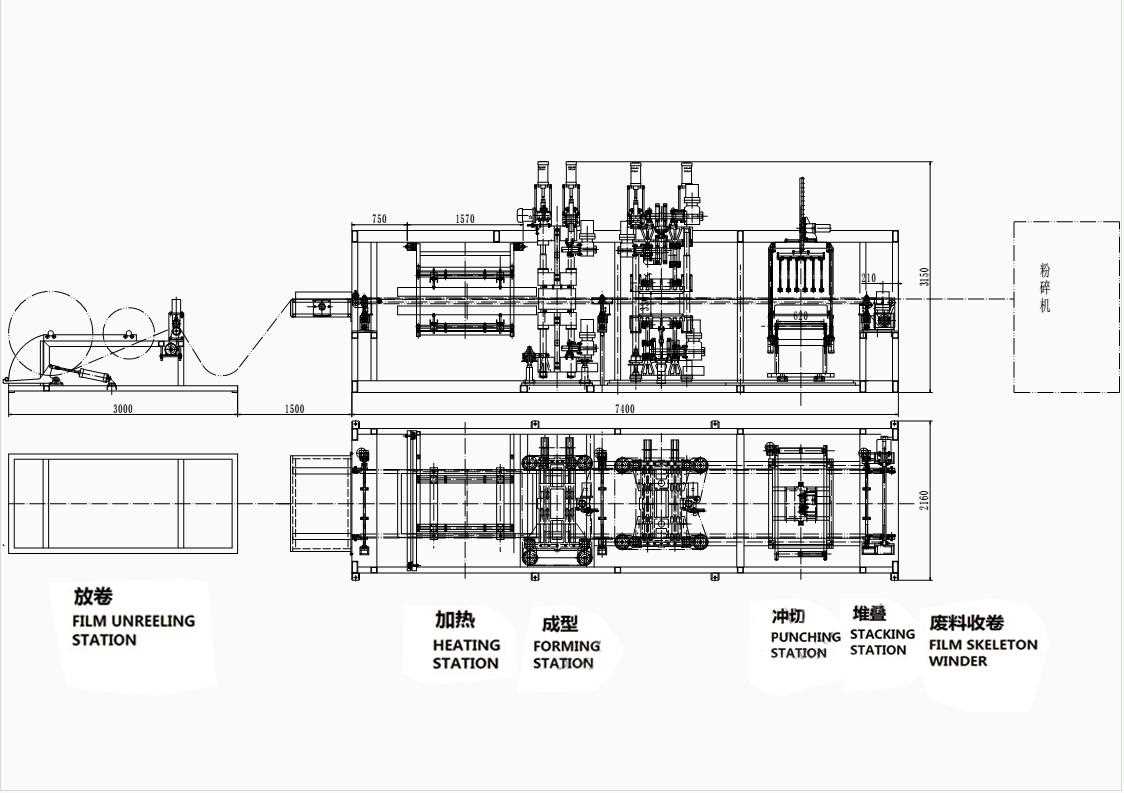

JY-820-600 Three Station Plastic Container Thermoforming Machine
Technical Data：
|
Sheet Width (mm)
|
500-860
|
|
Sheet Thickness (mm)
|
0.2-1.5
|
|
Maximum sheet diameter (mm)
|
800
|
|
Power consumption
|
50-60KW/H
|
|
Max. Forming Area(mm2)
|
820×600
|
|
Forming Mould Width(mm)
|
500-820
|
|
Max. Forming Depth(mm)
|
110/ 70
|
|
Max. Cutting Area(mm2)
|
820×580
|
|
Cutting Power（ton）
|
60
|
|
Work Efficiency(cycles/min)
|
Max. 30
|
|
Product Finalize Cooling
|
Water Cooling
|
|
Air source (external)
|
air demand (m3/ min)
|
≥2
|
|
Air pressure (MPa)
|
0.8
|
|
Used Power
|
3 Phase 4 wire 380V50Hz
|
|
Heater Power(kw)
|
120
|
|
Total Max. Power(kw)
|
150
|
|
Max. Overall Size(L×W×H) (mm)
|
11040×2700×3200
|
|
Total Weight( T )
|
≈14
|
Summary of Machine:
1. JY Pressure and Vacuum High-speed Thermoforming Machine is our latest developed product imported Germany technology which is the new generation of revolutionary product in the field of packaging, food, electronics industry. This series is widely used and universal. This model can be suit for most of the products as customer requested.
2. JY series are running with high speed, low noise, and low energy consumption environment, its reliability, operation and maintenance aspects are absolutely trustworthy.
3. Maximum production speed reached to 30 cycles/minute, definitely can be named as high speed thermoforming machine. All adopt absolute servo control system with advance automatic system, perfectly suited for PLA, PP, PS, PET and PVC material.
4. Tool change system of optimized ergonomic design which shortens the time for tool change extremely, together with steel rule cutting station and stacking station, ensure the maximized production time.
5. Advanced heating system with latest modules for temperature control, fast reaction time, resulting in high efficiency and low cost.
Function:
1. Mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Touching screen operation is simple and convenient.
2. Pressure and vacuum forming.
3. Up and down moulds forming type.
4. Servo feeding, length step less adjusting, high speed accurately and stablity.
5. Up and down heater with three phases heating.
6. Electric heating furnace temperature control system adopts full computer intelligent automatic compensation control, partition control using digital input interface one by one, has the high precision fine-tuning, uniform temperature, heating up fast (only 3 minutes from 0-400 degrees), stability (not influenced by external voltage, temperature fluctuations no more than 1 degree), low energy consumption (energy saving about 15%), the furnace plate advantages for long life.
7. Forming and cutting element with open and close servo motor control, products with automatic tally output.
8.Products to be down stacking type.
9. With product information and data memory function.
10. Feeding caterpillar width can be synchronization automatic or discretely electric adjusting.
11. Heater automatic shift out device.
12. Mechanical loading device, reduce workers labor strength.
Main electric parts brand:
|
PLC
|
B&R
|
|
Touch Screen Monitor (15 inch)
|
B&R
|
|
(5kw) Feeding Servo Motor
|
B&R
|
|
(5kw)
Forming down mould servo motor
|
B&R
|
|
(5kw)
Forming up mould servo motor
|
B&R
|
|
(6kw)
Cutting up mould pneumohydraulic pressure-cylinder
|
B&R
|
|
(5kw)
Cutting up mould pneumohydraulic pressure-cylinder
|
B&R
|
|
Heater 196 pcs
|
Germany Elstein
|
|
Contactor
|
France Schneider
|
|
Thermo Relay
|
France Schneider
|
|
Intermediate Relay
|
France Schneider
|
|
Vacuum Pump
|
UNIVERSTAR XD0100F
|
|
Pneumatic Elements
|
SMC
|
|
Cylinder
|
ZHICHENG
|
SAMPLES
