Quick Details
Description
Please contact us:chensong@mec.com.cn

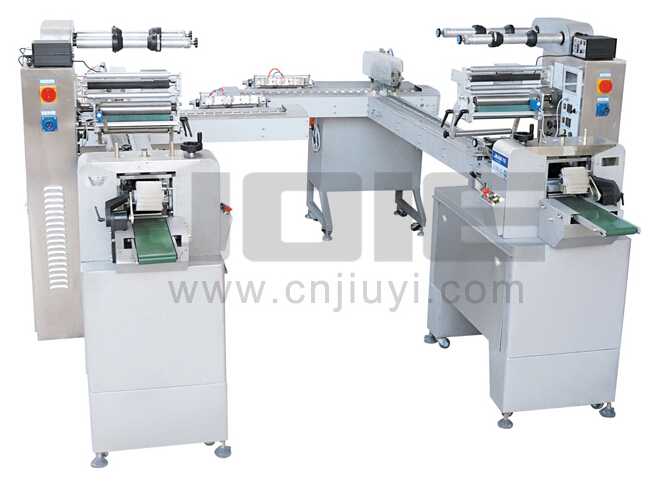

1.The whole structure is in face-back-face pattern,easy to operate and convenient to maintain;
2.he whole structure is made of stainless steel,by special stainless steel surface treatment technologies and proper sealing technologies,completely rust-proof and water-proof,ideal for use in humid environment or other unfavorable environments for a long time;
3.Packing speed and packing length are controlled by perfect combination of advanced variable frequency speed regulation and servo driving technologies. The LCD screen is easy and convenient to operate;
4.Whole unit start and interlinked operating speed can be controlled by any one mainframe;
5.Packing length is tracked by photoelectric eyes accurately and automatically,manual adjustment is unnecessary after settings;
6.With features that the mechanism is precise and compact,and it is easy to operate,etc;
7.The unit can be used together with ice cream production lines to finish automatic materials feeding,transferring and packing in one time.
Using range
ice-cream suit automatic production line can fit for one set of six ,two sets of six,three sets of six auto-loading feeder,the yield is 7500 ~ 20000 / hour,there ar
Technical parameter
| Packing speed (bag/minute) |
125(1 Table )260(2 Table)335(3 Table ) |
| Packing size(mm) |
L180-238 W35-100 H20-40 |
| Maximum width of film(mm) |
350 |
| Motor power |
2.5KW(1 Table ）5KW(2 Table）7.5KW(3 Table） |
| Heats up power |
23.2KW(2 Table）4.8KW(3 Table） |
| Rated voltage |
220V |
| Rated frequency |
40Hz |
| Weight of the machine |
750kg(1 Table)1500kg(2 Table)2250kg(3 Table） |
JIUYI Machinery Co., Ltd. is located in Yantai Road,Yongqiang Avenue,ETDZ Wenzhou China,Specializing in R&D, design, manufacturing,sales and after-sales services.Our company has developed a variety of different types machines,widely used for food, drinks,paper,metal appliances,and household industries. Especially for the automatic packing machine,sealing machine,filling machine,ice cream machine and bakery equipment.We have applied for many national patents and most have Passed CE certificate,Products well selling in domestic and overseas market,Like:Europe,North America,South America, Central Asia, southeast Asia, Africa etc.
USING HIGHT-TECH BENEFIT FOR CUSTOMERS is our approach.FAST AND THOUGHTFUL AFTER-SALES SERVICE is our principle.we do think what our customers think and we do care what our customers care,give the utmost care and attention for each process of customer consumption.we will continue to improve ourselves,to create our own brand by excellent quality and sincerely service,Let's together towards a more WIN-WIN situation.
