Quick Details
Parameter
Place of Origin: : Zhejiang, China
Brand Name: : ANDELI
Model Number: : JR7
Theory: : Thermal Relay
Usage: : General Purpose
Protect Feature: : Sealed
Contact Load: : Low Power
Frequency: : 50Hz
Voltage up to: : 660V
Current up to: : 30A
Stardand: : IEC60947-4-1
Description
JR26 Series Thermal Relay
Why choose us?
1. 20 years - Andeli Group Co., Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150, 000,000 - The total assets is USD150, 000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA……
Application
JR26 thermal relay is suitable for overload protection of AC motor operated on 8-hours duty or uninterrupted duty. The overload protected AC motor with frequency 50Hz, voltage up to660V, current up to 30A. Several functions provided by these relays are: phase-failure protection, temperature compensation. The product conforms to IEC60947-4-1 standard.
Motion Characteristic: Three-phase Balance Motion Time
|
No
|
Times of the setting current
|
Motion time
|
Start condition
|
Ambient temperature
|
|
1
|
1.05
|
>2h
|
Cold state
|
20±5oC
|
|
2
|
1.2
|
<2h
|
Heat state (Following the No.1 test)
|
|
3
|
1.5
|
<4min
|
|
4
|
7.2
|
10A
|
2s < Tp ≤ 10s
|
≤63A
|
Cold state
|
|
10
|
4s < Tp ≤ 10s
|
>63A
|
Specification
|
Type
|
Setting range (A)
|
|
JR26-25
|
2.4~3.8
|
|
3.8~6
|
|
6~9.3
|
|
8.9~13.5
|
|
13.5~20
|
|
17.4~24
|
|
22~30
|

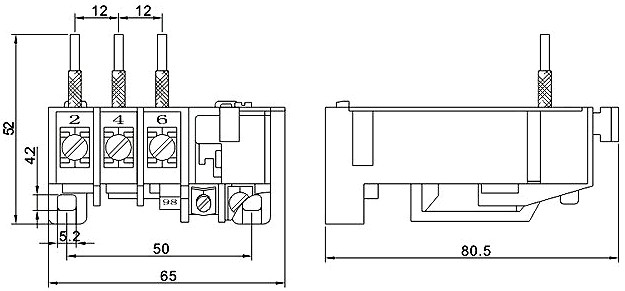

Dimension

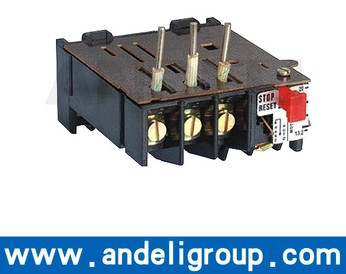

JR26 Series Thermal Relay
Pictures of the Andeli Group
Established in 1993, Andeli Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment, which has been rated as the first-class manufacturer in China.
With a workshop covering more than 27,000 square meters, we are able to supply various circuit breakers, contactors, relays, earth-leakage protective breakers, instruments, meters, LED lamps, LED displays, generators and other electric products.
Moreover, with over 60 series and more that 2,000 specifications, the annual output volume has reached USD24,000,000, and we have obtained CCC, CCEE & CE certificates.
Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
