Quick Details
Description
- Processing Type: Other
- Condition: New
- Product Type: plastic cap
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: JOBO MACHINERY
- Model Number: JB-30BY(16T)
- Voltage: 380V,50Hz
- Power(W): 7.5KW
- Dimension(L*W*H): 2700*1100*2200mm
- Weight: 2500KG
- Certification: CE
- Warranty: One year
- After-sales Service Provided: Engineers available to service machinery overseas
- Type: capping machine
- Material of plastic cap: PP/PE
- Cavity number: 16
- Capacity: 7500-8500pcs/hr
- Running type: Full automatic
- Delivery time: 60 working days
- Cap diameter: 20-60 mm
- Cap height: 10-30mm
- Power of hydraulic pressure: 7.5 KW
- Raw material of plastic cap: PP/PE

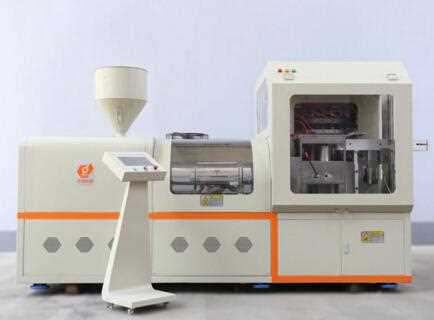

Cap compression molding machine. The most efficient plastic cap maker.
1. Stable system, low noise and convenient operation.
2. Adjustable mold temperature and material temperature which ensure the durability and stability of the equipment.
3. Simple operation, saving electricity, water, raw materials and labor.
4. 3-4 times production efficiency than the injection one.
5. No waste runner.
6. recyclable cooling water and hydraulic oil, which greatly reduces the system cost.
Cap compression molding machines now are the necessary equipment of famous drink manufactuer
We can manufacture multicavity injection mold with cold(hot) runner according to your requirement or sample, especially injection cap mold and preform mold.
Detail of cap mould:
1- Cores & cavities:stainless steel 2316 or S136,or according to customers demand.Hardness: 55-60
2- Sleeves stainless steel 2316 or S136,or according to customers demand.Hardness: HRC55-60
3- mould base: imported P20,treated by nitiding.Hardness: 38-40degree
4- Heat treatment hardness: HRC50-60
5- Number of cavities: Multi-cavity
6- Slide block: H13,or according to customers demand.
7- Oprating life:at least 3 million shot times
8- Customer service: one year free warranty, life-long technical support service.
2. Specifications
Type: JF-30BY (16T)
Capacity: 9200-10000pcs/hr
Cap diameter: 20-60 mm
Cap height: 10-30 mm
Power of heating ring of the extruder: 11 KW
Power of electromotor of the extruder: 5.5 KW
Quantity of mold head: 16
Power of electromotor of the molding press machine: 1.1 KW
Power of hydraulic pressure: 7.5 KW
Power of cooling system: 3 KW
Air consumption: 6kgs, 0.5 m3/hr
Supply voltage: 380V, 50Hz
Machine weight: 2500 KG
Machine size: 2700mm×1100mm×2200mm
Taizhou City Huangyan Jinfeng Plastic Factory is specialized in the bottle cap machine making and cap mold making.After years of production practice,we have rich experience of bottle cap machine making and cap mold making.To continuously enhance the competitiveness of firms,we invested a great amount of funds in introducing new advanced equipment,the introduction and development of professional and technical personnel,the customer is committed to provide better products and services.
We always insist on the quality policy-Honesty pragmatic,Quality first,Customer focus and Beyond commonplace. According to different requirements,We can provide flow from design,installation,debugging and after-sale services.
Sincerely welcome clients to visit our factory.In good faith with the customer is willing to establish a good,reliable and stable relations of cooperation,join hands and common development.
