Quick Details
Description
Please contact us:chensong@mec.com.cn

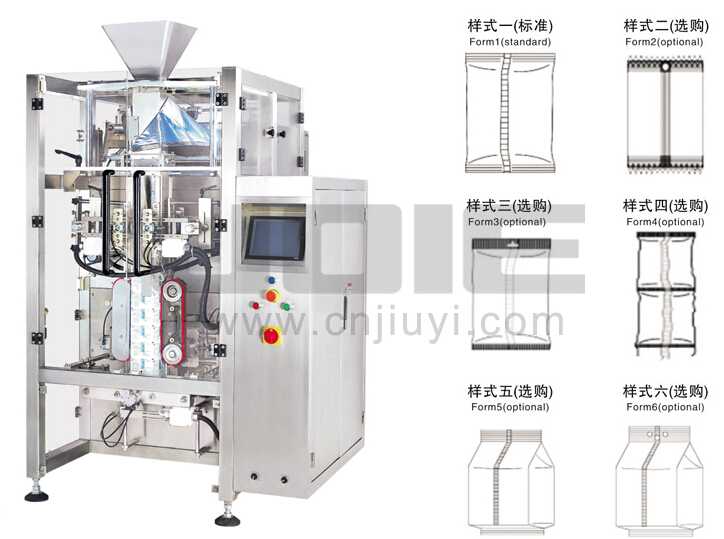

1、Imported PLC and color touch screen,HMI, easy operation, intuitionistic and efficient.
2、Separate pneumatic control and power control, noise is low, and the circuit is more stable.
3、Vacuum film feeding device and two synchronous belt device with servo control system,less film pulling resistance,high orientation precision, bag design can be kept well.And belts is more durable.
4、External film feeding mechanism. Film setting is easier and faster.
5、Close down type mechanism, defending dust into inside of machine.
6、Works with metering device,it can complete the whole procedure of metering, filling,bagging,date printing,exhausting,counting automatically.
Applications
Suitable for packing different kinds of products with different metering devices.
1.Elctronic Weighing System 4. Auger Filler
2.Volumetric Cup Metering Device 5. Liquid Filling and Weighing Device
3.emi-automatic Feeding Device
Optional Function:
1.Air flushing system
2.Nitrogen gas flushing
3.Hole punch device
4.Tear notch device
5.Link bag device
6.Flip device
7.Gusset bag
8. PE bag device
Optional External Device:
| 1. Air Compressor |
4. Nitrogen generator |
| 2. Check weigher |
5. 10/14/16 head combined weigher |
| 3. Metal detector |
6. Sala combined weigher |
Technical parameter
| Model |
JEV-520C |
JEV-680C |
JEV-820C |
| Measuring range |
2000ml(Max) |
4000ml(Max) |
6000ml(Max) |
| Bag-making size |
/ |
/ |
/ |
| Front width |
75-130mm |
75-130mm |
75-130mm |
| Side width |
40-80mm |
40-80mm |
40-80mm |
| With of side seal |
5-10mm |
5-10mm |
5-10mm |
| Bag length |
100-380mm |
100-380mm |
100-380mm |
| Packaging speed |
10-60bags/min |
10-60bags/min |
10-60bags/min |
| Packaging material |
OPP/PP、OPP/CPP PT/PE、PE、KOP/CPP、PT/PE/x AL/PE etc. Any heat-sealable composite materials foil/film |
| Max width of film roll |
520mm( Box bag :460mm) |
680mm( Box bag :520mm) |
820mm( Box bag :680mm) |
| Voltage |
220V 50-60Hz |
220V 50-60Hz |
220V 50-60Hz |
| Power |
5.5Kw |
5.5Kw |
5.5Kw |
| Dimension |
L1500*W1220*H 1800mm |
L1500*W1220*H 1800mm |
L1500*W1220*H 1800mm |
| Machine Weight |
600Kg |
700Kg |
850Kg |
Works with metering device,it can complete the whole procedure of metering, filling,bagging,date printing,exhausting,counting automatically.
