1.Nameplate:
|
Brand
|
WonLon
|
Type
|
Ordinary
|
|
Model
|
J21-160A
|
Power type
|
Electric
|
|
Electric
|
380V,3PH.50HZ
|
Main power
|
11kw
|
|
Controller
|
Arti.Auto.
|
Layout
|
Vertical
|
|
Throat
|
700mm
|
Stroke length
|
40-160mm
|
|
Stem hole
|
60×75mm
|
Stroke rate
|
38Spm
|
|
Max shut
|
580mm
|
Slid surface
|
380,630mm
|
|
Processing Obj.
|
Metal,etc
|
Weight
|
12500kg
|

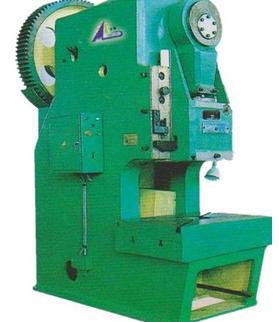

2.Stamping machines Brief Introduction:
J21 series press is regular open-die fixed platform press, it is the main equipment of stamping sheet metal production, and can be used for punching,blanking, trimming, bending, shallow or deep drawing,molding and various cold stamping process,and widely be used in national defense, aviation, automobiles, tractors, motor, electrical equipment, instrument, medical equipment, daily hardware Area, etc.The pressure range they can provide is 10T-350T.So there’ll be model for 10t, 16t, 25t,40t,63t, 80t ,100t ,125t ,160t ,200t,250t,315t,350t of pressing machine for your choice.
