Quick Details
Description
- Design: Scissor
- Type: Four Cylinder Hydraulic Lift
- Certification: CE
- Lifting Capacity: 6600Lbs/3000kg
- Lifting Height(mm): 79"/2000mm
- Overall Width(mm): 620mm
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: CE approved 300B scissor lift
- Model Number: 300B Small Scissor lift
- Warranty: 12 Months
- Products Name: 300B Small Scissor lift
- Lifting Time: 45 seconds
- Motor Voltage: 220V/380V
- Frequency: 50Hz/60Hz full rise small car scissor lift 300B
- Phase: 1ph/3ph full rise small car scissor lift 300B
- Net weight: 3760Lbs/1706kg
- Feature: Scissor car lift 300B Small Scissor lift
- Function: Movable scissor lift
- Model: Car lift 300B Small Scissor lift
- Keywords: scissor lift
Features:

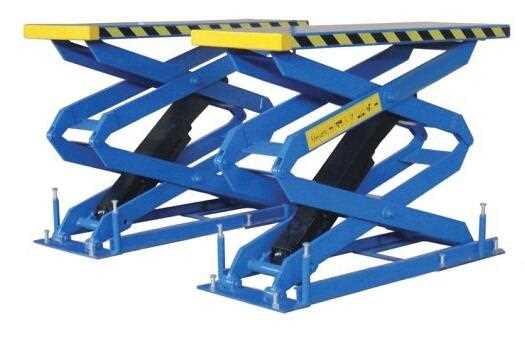

The full rise small scissor lift is applicable to lifting, detecting, repair and maintenance of various cars and small vehicles
Flush-mount design, takes less place
Flush-mount installation, equipped with foot injury proof alarm device
Dual mechanical self-lock gears and hydraulic lock for more safety, the locks will be released while descending
Safety and reliable, high performance and excellent synchronously, easy for tire changing and chassis maintenance
The elongated track make the lift suitable for long vehicles
24V electric control box and 24Vlimit switch
Pneumatic lock device, anti-crack valve and Italian ball valve are standard configuration
Italian hydraulic pump station for optional
Technical data
|
Lifting Capacity
|
6600Lbs/3000kg
|
|
Lifting Height
|
79"/2000mm
|
|
Lifting Time
|
45seconds
|
|
Min Height
|
13"/330mm
|
|
Extensible Length
|
7"/170mm
|
|
Platform Width
|
22"/550mm
|
|
Width between two platforms
|
32"/800mm
|
|
Platform Length
|
56"/1430mm
|
|
Motor Voltage
|
220V/380V
|
|
Frequency
|
50Hz or 60Hz
|
|
Phase
|
1Ph/3Ph
|
|
Net Weight
|
3760Lbs/1706kg
|
