Quick Details
Description
|
Model
|
specifications (mm)
|
Feeding size(mm)
|
Biggest size of material(mm)
|
Capacity
(t/h)
|
Motor power(kw)
|
|
PF-0607
|
ø-644*740
|
320*770
|
100
|
10-20
|
30
|
|
PF-0807
|
ø-850*700
|
400*730
|
300
|
15-30
|
30-45
|
|
PF-1008
|
ø-1000*800
|
400*830
|
300
|
30-50
|
37-55
|
|
PF-1010
|
ø-1000*1050
|
400*1080
|
350
|
50-80
|
55-75
|
|
PF-1210
|
ø-1250*1050
|
400*1080
|
350
|
70-120
|
110-132
|
|
PF-1212
|
ø-1250*1250
|
400*1300
|
350
|
100-150
|
132-160
|
|
PF-1214
|
ø-1250*1400
|
400*1430
|
400
|
130-180
|
160-200
|
|
PF-1315
|
ø-1320*1500
|
860*1520
|
500
|
160-250
|
180-260
|
|
PF-1320
|
ø-1320*2000
|
860*2030
|
500
|
300-350
|
300-375
|

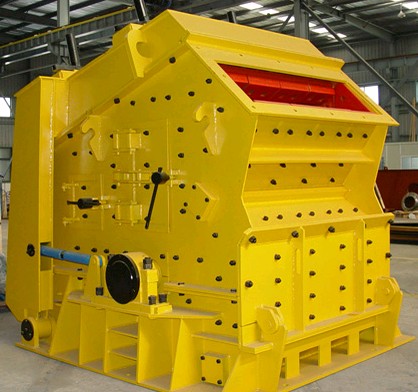

Impact crusher can be widely used in water, electricity, highway, artificial aggregate production, crushing business and so on. The type of impact crusher can be dealing with the material( (granit, limestone, concrete and so on) with the side length 500mm, not more than 350Mpa anti-pressure strength.
This series of impact crusher which is fit for hard rock crushing has special crushing structure, high chromium plate hammer, special impact plate.
Impact crusher supplied by Hongji Group can be adjusted so as to simplify the crushing circuit. Our impact crusher has the advantages of big crushing ratio, high crushing efficiency, cube showing of the product shape and optional crushing function.
Henan Hongji Mining Machinery Co., Ltd. is a reputed manufacturer and joint-stock enterprise with import & export rights and mainly produces large and medium-sized mining machinery, metallurgy machinery and building material equipment.
Our headquarters, covering 80,000 square meters, is located in Mechanical Industrial Park of West Zhongyuan Road, Zhengzhou City, Henan Province, China, owning more than 180 sets of heavy processing equipment with an annul output of more than 800 sets of mining machinery. Our fixed asset is RMB80,000,000 and we have four subsidiaries and a R&D department.
Since the establishment, we have been insisting on the scientific management system of modern enterprise, manufacturing with care and creating independently. Lots of technological elites assemble here. There are more than 880 employees, including 138 middle and senior engineers and more than 200 skilled workers in our company. We have been cooperating with domestic and foreign Scientific Research Institutes for a long time and have set up a testing base which has domestic and foreign techniques.
Product quality is considered as the life of our company and all our products have attained the certification of ISO9001:2000 qualify system. Moreover, superior after-sales services guarantee high quality continuously. In addition, we have a group of experienced and excellent after-sales service members who provide following up services for worldwide customers.
Customers' need is what we are trying to create. Customer satisfaction is what we are seeking. Over the last couple of decades, Hongji people have created continuously, transcending ourselves and insisting on the concept of "Development is of overriding importance". Develop the brand with quality. Promote the brand with service. We, Hongji people, are forging ahead for first-class brand with innovative spirit and do our best to contribute to the national industry.
