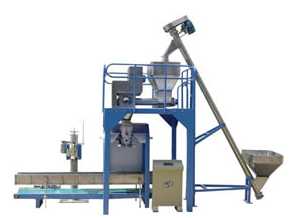

Semi-automatic packaging system
This ice packaging system features a significant cost and value quotient. For lower price you will get a system which carries the functions of automatic loading, weighing, and filling. Operator needs to install bags onto the weighing outlet and insert bags into hot sealer manually by hand.
FP-01S is designed to offer the features of hygiene, large packing size, super fast and multi-optional flexibility. It has all food contacting area covered by the high quality SUS304, performed at ±0.2% superb deviation. It can pack multiple weight requirements between 2Ks and 15Ks at rate of 8-20 packs per minute. Multi-functional, can be used in various products packaging.
Loading section, FP-01S is utilizing the auger type loader, which has been SiO2-plated on the outside surface for thermal protection.
FP-01S has equipped with AD 20-digital data exchanging circuit for operation controlling, diagnosing, and 6-digital LCD display and button board. This controlling system will enable you to upload packaging parameters.
Weighing section is combined with the filling section, it contains a loading cell, bag-clamper and dust extractor, load sell is for product weighing, dust extractor for dust connecting. Operator need to put the packaging bag on the outlet manually. Hot sealer is positioned at the end of output conveyor.
System structural components:
- Packaging machine
- Auger type elevator
- Sealing machine
- Output conveyor
- Iron frame
System configuration:
- Alternator: Chuanghong (Taiwan)
- LCD: Panasonic (Japan)
- Compressor: AIRTAC (Taiwan)
- Paddle switch: Delixi (China)
- Power control: Schneider (Germany)
- Data exchanging circuit: Panasonic (Japan)
Specification:
|
|
MEASUREMENT
L×W×H mm
|
NET WEIGHT
Kg
|
GROSS WEIGHT
Kg
|
VOLUME
CBM
|
|---|
|
Packaging section
|
1208*1100*1700
|
450
|
600
|
2.260
|
|
Output conveyor
|
1800*800*60
|
70
|
100
|
0.086
|
| Auger-type loader |
2100*960*2000
|
70
|
110
|
4.030
|
Power: 380 V±10% 50 Hz 5 kW
Bag width: 350mm
Metering speed:8～20 bags/min
Air consumption:
Weighing accuracy:±0.2%～0.5%
Metering capacity:2-15Kgs
