• ISO9001 2008 steel and gold plated railway Passenger Coach

ISO9001 2008 steel and gold plated railway Passenger Coach

Type:passenger car (rail); Material:steel and gold (titanium) plated; Dimensions (L x W x H) (mm):As per your demand;

Product Details

Quick Details

Description

Type:passenger car (rail)
Material:steel and gold (titanium) plated.
Dimensions (L x W x H) (mm):As per your demand
Place of Origin:China (Mainland)
Brand Name:CA25G
Model Number:CA25G
Track gauge:1050
Running speed:110km/h
Certification:ISO9001:2008
Standard:AAR,UIC,IRIS
Min. radius of curve:75M
Axle load:12T
Length of carbody:20000MM



Specifications:



Max. ambient temperature

+50°C

Min. ambient temperature

-10°C

Height above sea leve

1000m

Track gauge

1050 mm

Min. radius of curve

75m

Loading gauge

UIC 505-1

Height of platform

1050 mm

Distance between platform edge and

Center line of track l550mm

Service speed

100 km/h

Emergency brake distance load ,100k m/h

513m

Axle load

12 t

Index of running stability 100km/h W = 2.5



Noise  in room

≤65 dBA

Thermalinsulating properties K

≤1.4 W/m2.k

Length of carbody

20000 mm

Width of carbody

2805 mm

Height of carbody tare weight

3800 mm

Height of coupler tare weight

840+ 10 mm

Length of coupling  line

21076 mm

Height of floor

1 232 mm

Height of gangway

1325 mm

Distance between bogie centers

14000 mm

Wheelbase

2200 mm

Wheel diameter

840 mm

Power supply system

centralized power supply, AC 220/380 of corollary generator car,   battery power supply DC110V of this car

Water tank capacity of Passenger car  L

water tank fixed under the underframe 910

Power of generator car

2×145kw

Water tank capacity of



Generating car   L

water tank fixed under the underframe 400

Service  life

30 years

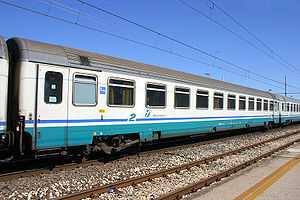

railway Passenger Coach

Company Profile

We specialized in Railway bogie casting parts, like bogie18-100 to Russia, bogie1750 to Ukraine, both bogie18-100 and bogie1750 with certificate can make sure products enter into your market.Bogie18-578, bogie18-194 and bogie 18-7020 will be ok soon.

Our main products: wagon(1000mm-----1067mm gauge), wagon bogie, bogie bolster, sideframe, coupler, yoke, knuckle, wheel, axle, wheelset, center plate, spring.....

We have been cooperated with many big companies and manufactures in Russia, Ukraine, Canada, America and south America. Our experienced engineers offer a wealth of design and application expertise. We can offer you more than 20 years of experience in designing and manufacturing to satisfy your particular needs. Our company has advanced equipment, professional staff. Our raily way parts productions obtained CRCC, IRIS , AAR, UIC, TSI, Ukrsepro and ISO9001: 2000 quality system certification, which guarantees high quality railway products for domestic and foreign manufactures.

Our International trade department is responsible for the product export, and undertakes the train design, manufacture, maintenance, and production of major cast steel parts and bogie parts.

"Quality Products, Excellent Service, Competitive Prices and Prompt Delivery" is our principle. We have built up good relationships with customers all over the world. We are advancing into global market drastically. Additionally, we have put considerable efforts on development and design, which can enable us to better satisfy customers' changing needs in a positive manner.

We are pleased to be your stable railway parts, components any products such as casting parts, bogies we can make them according to your drawings.

We sincerely welcome you to visit our company for cooperation and mutual development.
