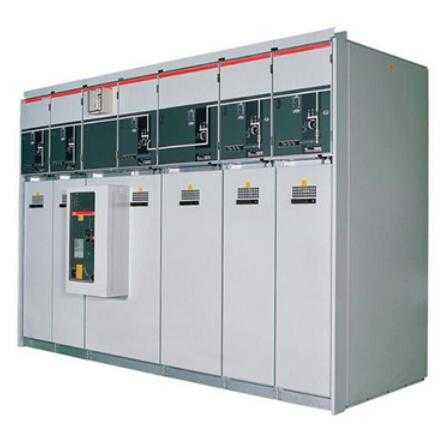

iUniuswitch Air Insulation Ring Main Unit

iUniswitch, the light flexible switchgear developed as a modular, simple to apply design, with fewer components, providing a high reliable, quality and safe product for you, our Customer. By reducing the number of components, utilising modern materials correctly, we have developed an environmentally and user friendly product. The simple design and construction of iUniswitch will stand the test of time for generations to come.
iUniswitch is an air insulated (AIS), metal enclosed, switchgear cubicle design of the next generation developed through continuous innovation and vision to meet the changing market needs.
iUniswitch provides long-term technical solutions for various applications. Safety, user friendliness and environmental con- cerns have been the driving force in the development of the switchgear.

Feature

iUniswitch product provides our Medium Voltage Customer with the best solution for heavy duty switchgear in a size only a little than a single tank Ring Main Unit while including:

the flexibility in meeting our Customers specification and accomodating on future change and upgrading

the options include complete control, measuring and protection systems

iUniswitch Air Insulation Ring Main Unit Construction

Metal enclosed switchgear

iUniswitch Air Insulation Ring Main Unit

Busbar compartment

The busbar compartment is located on the top of the cubicle. This compartment contains the main busbars that intreconnect between switchgear cubicles.

Switching compartment

A 3-position SF6 switch disconnector with epoxy cast resin housing is provided with inspection windows and available also with gas density indicator.

Cable compartment

75 % of the space in the switch disconnector cubicle is reserved for power cable connection making it possible to use both 1- and 3-phase cables with most simple unscreened terminations. Space is also adequate for cubicle accessories such as surge arresters, current transformers, second earthing switch etc. The door has an inspection window and safety interlocking as standard. For cable entry there are 3 individual cable gland plates in the bottom with support for a suitable dimensioned cable clamp. The bottom and the threshold of the cubicle can be removed for ease of cable installation.

Mechanism, interlocking and low voltage compartment

Behind a hinged door (which serves as control panel) are located the spring operating mechanism with position indicator and the mechanical interlocking unit. There are also facilities for cubicle accessories such as: auxiliary contacts, tripping coil, emergency tripping mechanism, capacitive voltage presence indicating system, key interlocks and motor operating device. Space is also provided for control circuits and measuring instruments as well as a protection relay. In the 750 wide cubicles there is also a second indentical compartment for further accessories.

The upper part of the cubicle, including the busbar compart- ment, the switch disconnector and the mechanism and low voltage compartment is separated from the lower part and the cable compartment. Because of this it is possible to carry out maintenance, repair and upgrading of the unit in the lower module while the switchgear is in service.

iUniswitch Air Insulation Ring Main Unit Construction

Primary part

Top unit

3-position switch disconnector SFG

Operating mechanism with mechanical position indication

Enclosure of busbar compartment

Integrated low voltage compartment for secondary components

Interlocking unit

Busbars

Control cable ducts

Bottom unit

Enclosure

Circuit breaker (fixed version)

Current transformers

Earthing switches

Voltage transformers

Cable entry with cable support

Cubicle Types / Cubicle Program

Switch Disconnector Cubicle, type SDC

Switch Disconnector with Fuse, type SDF

Circuit Breaker Cubicle, type CBC

Withdrawable Circuit Breaker cubicle, type CBW

Sectionalising Cubicle, type SEC

Bus Riser Cubicle, type BRC

Sectionalising cubicle with Fuse, type SEF

Sectionalising Breaker Cubicle, type SBC

Direct Busbar connection Cubicle, type DBC

Sectionalising Withdrawable Breaker cubicle, type SBW

Sectionalising Metering cubicle with Disconnector, type SMD

Bus Metering Cubicle, type BMC

Sectionalising Metering Cubicle, type SMC

Universal Metering Cubicle, type UMC

iUniswitch Air Insulation Ring Main Unit Technical data

1) Higher values in accordance with national standards on request
2) Adjustment is necessary for greater altitudes1) Higher values in accordance with national standards on request

3) Lower ambient temperature on request.

4) 1250 A = CBW, SBW, BRC, DBC
