Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: skylift
- Model Number: SJL Aluminium Lift
- Lift Mechanism: Telescoping Lift
- Lift Drive / Actuation: Hydraulic
- Power: 200v, 2.2kw
- Rated Loading Capacity: 200kg
- Min. Lifting Height: 6m
- Max. Lifting Height: 16m
- Table Size: 1.65x0.65x1m
- Overall Dimensions: 1.9x0.9x1.98m
- Weight: customized
- Certification: ISO certificate
- Warranty: 12 months
- After-sales Service Provided: Engineers available to service machinery overseas
- Type: SJL Mobile Aluminium Lifti
- Color: orange red or blue
- Paint: anti-rust paint and finish paint
- Mainly structer: aluminimum alloy
- Motor power supply: 220v electric etc
- Control methods: control panels both on the top platform and ground
- Moving: manual pushed, with four wheels
- Mperate: manual
- Tyre: solid tyres or pneumatic tyre
- Usage: lift workers to the higher level
This lift offer a safe, quick and easy method of reaching overhead areas. Mostly designed to lift one-two person, these platforms are extremely compact, lightweight and easy to maneuver.

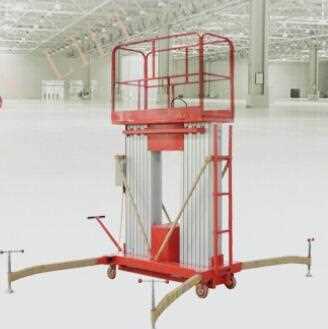

The vertical personnel lift consists of a working platform attached to an aluminium mast that extends vertically, which in turn is mounted on a steel base. These personnel lifts has a reach of up to 16m and capacities up to 200kg.
Features
You can control the lift both on the platform and ground, just need press stop button, it can stop at any point if you need.
Personnel Lifts are available in various AC and DC powered models.
Advantages
AC Powered Models (220v)
Powered by a plugged power point
No noise and air pollution
Indoor Usage
Longer usage time
DC Powered Models
Battery operated, can be use outdoor
Use for workspace constraints
|
Model
|
SJL-10
|
SJL-12
|
SJL-14
|
|
Max platform height(m)
|
10
|
12
|
14
|
|
Max working height(m)
|
12
|
14
|
16
|
|
Load capacity(kg)
|
150
|
150
|
150
|
|
Stowed height(m)
|
1.98
|
1.98
|
2.6
|
|
Total dimensions(m)
|
1.9x0.9x1.98
|
2x0.9x1.98
|
2x1.2x2.6
|
|
Platform dimensions(m)
|
1.65x0.65x1
|
1.65x0.65x1
|
1.65x0.65x1.1
|
|
Safety guardrail height(m)
|
1
|
1
|
1.1
|
|
Common motor power
|
220v,2.2kw
|
220v,2.2kw
|
220v,2.2kw
|
Who We Are?
We are one of Chinese largest manufacturers and suppliers of scissor lift tables and material handling equipment. Our brand is SkyLift.
SkyLift has been successfully installing equipment into companies of all sizes in all industrial sectors including engineering, manufacturing, packaging, processing.
Our Product Range
Skylift produce lift tables are suitable for almost every application within all industries, from the small handling tables to the largest lorry loaders or floor to floor lifts. The capacity ranges from 200kg up to 10,000kg. In all, there are over 300 standard models as well as custom built specifications.
Where We Are?
Located in a coastal city, we enjoy great export advantage.
SkyLift integrates the manufacture, service and sales with extensive warehousing facilities.
Why Use Skylift?
With over 5 years of experience in the manufacture of material handling equipment, Skylift's skilled team can provide fast responses and technical expertise, whilst our nationwide network provides on-site product demonstration and competent advice in order to achieve the most cost effective solutions to your lifting and handling needs.
Technical Services
Skylift products are designed to provide a long trouble free working life. However, in the unlikely event where a fault might occur, Skylifts Service Centre is on hand to offer assistance. All of our service personnel are highly qualified with many years' experience of working on our products.
Your satisfaction is our constant pursuit!
