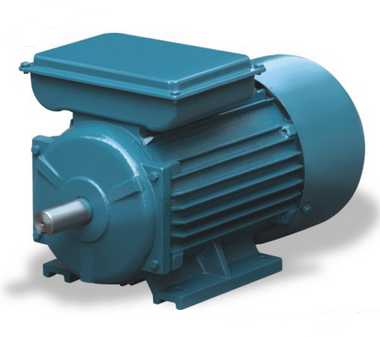

• IEC Gp (Permanent Capacitor) Single-Phase AC Motor

IEC Gp (Permanent Capacitor) Single-Phase AC Motor

Frame Material: Cast Iron (frame size 80-132, Aluminum Frame size 63 -112

Product Details

Quick Details

Description

Applications


  • Pumps
  • Fans
  • Conveyors
  • Blowers
  • Air compressors
  • Industrial equipment
  • Milling machines
  • Tools
  • Farm equipment
  • Aeration equipment
  • Other moderate-to-high starting torque applications.


Standard Features


  • Single-phase, II and IV pole, 50Hz
  • Frame Material: Cast Iron (frame size 80-132, Aluminum Frame size 63 -112
  • Squirrel cage rotor / Aluminum die cast
  • IEC dimension
  • Insulation Class 'B'
  • High starting torque
  • Continuous Duty (S1)


Optional Features


  • special Voltages and frequen
  • Insulation Class 'F'
  • B34/B14/B5 mount

Technical data




Type Rated output Voltage Frequency Speed Efficiency Power factor Current Is  Ts  Nosie
Kw HP V Hz r/min % cosΦ A In Tn Lw dB(A)
ML80M1-2 0.75 1 220 50 2800 72.0 0.95 5.94 5.5 1.8 75
ML80M2-2 1.1 1.5 220 50 2800 74.0 0.95 7.74 5.5 1.8 75
ML90S-2 1.5 2 220 50 2840 75.0 0.95 9.4 5.5 1.8 78
ML90L-2 2.2 3 220 50 2840 76.0 0.95 13.7 5.5 1.7 78
ML100L-2 3 4 220 50 2840 78.0 0.95 18.2 6 1.7 83
ML112M-2 3.7 5 220 50 2840 79.0 0.95 22.6 6 1.7 83
ML132S-2 5.5 7.5 220 50 2880 80.0 0.95 34.5 6 1.7 83
ML80M1-4 0.55 0.75 220 50 1400 68.0 0.92 4 5 1.7 70
ML80M2-4 0.75 1 220 50 1400 70.0 0.95 5.2 5 1.7 70
ML90S-4 1.1 1.5 220 50 1400 71.0 0.95 7.2 5 1.7 73
ML90L-4 1.5 2 220 50 1400 73.0 0.95 9.6 5 1.7 73
ML100L1-4 2.2 3 220 50 1400 75.0 0.95 13.9 5 1.7 78
ML100L2-4 3 4 220 50 1400 77.0 0.95 18.6 5 1.7 78
ML112M-4 3.7 5 220 50 1430 78.0 0.95 22.8 5.5 1.7 83
ML132S-4 5.5 7.5 220 50 1440 79.0 0.95 35 5.5 1.7 83





IEC Gp (Permanent Capacitor) Single-Phase AC Motor

Company Profile

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
