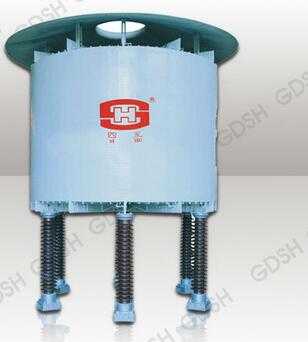

IEC 289:1987 Standard 12kV Outdoor Resin Insulation Air Core Reactor

• Condition: New
• Automatic Grade: Automatic
• Type: Tank Reactor
• Place of Origin: Guangdong, China (Mainland)
• Brand Name: Sihu
• Model Number: CKSC
• Voltage: 10kV
• Power(W): as required
• Dimension(L*W*H): as required
• Weight: Around 800kg
• Certification: IEC
• Warranty: 18 months
• After-sales Service Provided: Engineers available to service machinery overseas
• Product Name: 12kV Epoxy Resin Air Core Type Reactor
• Quality warranty: 18 months after arrival the destination
• Standard: IEC 289:1987
• Certificate: ISO 9001:2008
• Technology: Vacuum casting
• Place used: Indoor
• Color: Red
• Phase No.: 3
• Test: routine test type test

Our series reactors are suitable for a power system of 6~10kV.They are connected serially with high voltage parallel capacitor group to depress a wave deformation in the system.

1).System Rated Voltage (kV): 3kV up to 35kV

2).Rated Capacity: up to 1200 kVar

3).Rated Current: up to 4000A

4).Rated Voltage For Capacitor (kV): 6.6√3, 7.2√3, 11√3, 12√3

5).Rated Frequency: 50Hz (60Hz on request)

6).Installation: indoor or outdoor

7).Series Reactor Number for Each Phase: 1

8).Insulation Class: F

*Except for the technical parameters list above, we can design as per clients’ requirements.

1).Low loss, low noise, high operation efficiency
2).High ability of protection against short circuit

3).High mechanical strength
4).Pre-galvanized steel frame, flame-resistant, against corrosion

5).With outstanding fire-proof capability: the epoxy resin is difficult to flame and self-extinguished. So it won’t lead to the second disasters, such as an explosion.

6).Cast epoxy resin with high dielectric strength 18~22kV/mm in vacuum process

7).Superior in environmental performance: the epoxy resin is very stable, moisture-proof and dust-proof. It enables dry-type power transformers to run with high reliability under abominable environment.

8) With theimpeccable temperature control and indicating system, dry-type power transformers can be maintenance free. And this offers a great reduction of operation cost.

9).With small volume, light and convenient for installation and alignment

10).No need of a separated room

1).Insulation Material: epoxy resin

2).Winding Material: Aluminum wire or high quality enameled copper wire (foil winding is available for power transformer)

3).Core: core lamination, low loss, cold rolled grain oriented silicon steel

5. Types of Our Reactors:

Core-type Reactors, including: Core-type Series Reactors, Core-type Start-up Reactors, Core-type Shunt Reactors, Arc Suppression Coils, Core-type Earthing Transformer and Filter Reactors and so on.

6. Manufacturing Standard:IEC60076-6:2007, GB/T 1094.6-201

 7.Technical Parameters for CKSC Reators please see Table 1~2

The formula can be used for calculation at different rated reactance percentage (Xn%)

Sn=Xn%·Qc

Where: Sn-rated capacity for 3-phase reactor (kVar)

             Qc-capacity for 3-phase capacitor group

Notes: Other technical data and outline drawing are provided under request.
