Steel pipe fitting crimping machine
Specifications:
Crimping machine name

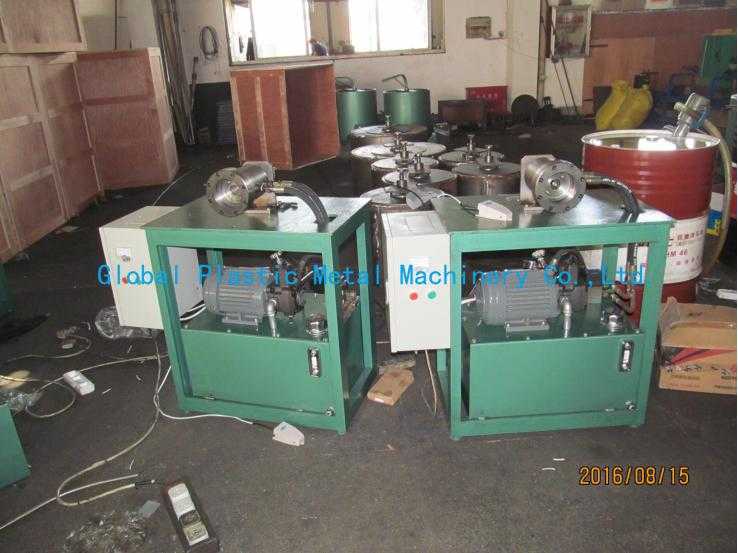

GB-HC Hydraulic hose crimping machine
Warranty
1 year
Control system
Electric Automatic
Good after sale services
yes
Crimping range(Inner diameter)
4-32mm(1/6"-1 1/4")
Crimping range(Outer diameter)
6-80mm(1/4"-3 1/6")
Free dies
1 sets of dies
Voltage(as your requirements)
110V-480V 50/60HZ
Motor power(as your requirements)
3KW/4KW 1,2,3Phase
After packaged Demension
650*530*650mm
System pressure
31.5Mpa
Crimping speed
4s-5s one time
Control model
Micro control with Button control with pedal
Crimping force
3600KN(360T)
NO.Hydraulic oil
46/32#
Oil seal
NOK oil seal
Yuyao Global Machinery Factory, as a professional manufacturer is mainly engaged in the manufacture of plastic & metal machinery. We are one of the best enterprises to introduce advanced technology from overseas. Besides, our company has a professional group with rich experience both in R&D and management. We can provide specialized and tailor-made machines for domestic and overseas markets. With the principle of high-quality products and best service, we always be creative and make our effort to provide the first-rate machines for customers. We already exported our machines to: Europe, South America, Middle East, Asia, Africa,North America etc The main products of our company are:flexible metal hose machine;Metal corrugated pipe forming machine; flexible metal hose pvc coating machine,Artificial rattan extrusion machine,Plastic recycling machine;plastic pipe extrusioin machine;PVC profile extusion line;Cable and wire equipment etc. Welcome to inquire us and hope to build a successful cooperative relationship.
