Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: heami

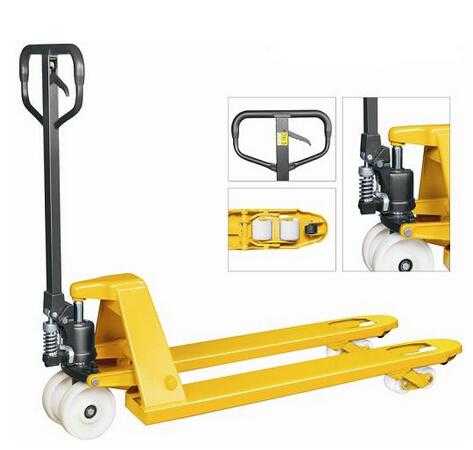

- Model Number: pm3 Pallet Jack Hand Truck
- Lift Drive / Actuation: Hand
- Name: Pallet Jack Hand Truck
- COLOR: OPTIONAL
- Packing: wood pallet
- Operate: manual
- surface treatment: POWDER
- USAGE: WEARHOUSE WORKSHOP
- HANDLE: 3-POSITION
- BRAND: HEAMI
- MATERIAL: STEEL
- Manufactory: jinhua ryder
|
Item/Model
|
|
PM3
|
PM3
|
|
Rated load Q
|
kg
|
2500
|
3000
|
|
Minimum height h13
|
mm
|
85
|
|
Steering wheel
|
mm
|
180x50
|
|
Fork wheel
|
mm
|
80x73
|
|
Lifting height h3
|
mm
|
200
|
|
The total height h14
|
mm
|
1175
|
|
Total length L1
|
mm
|
1530
|
1600
|
|
Nominal length L
|
mm
|
1150
|
1220
|
|
Nominal width b5
|
mm
|
540
|
685
|
|
Ground clearance m2
|
mm
|
33
|
|
Fork size s/e
|
mm
|
48/160
|
|
Dead weight
|
kg
|
75-100
|
Full hydraulic system. Bullet connection between steering shaft and pump piston. It is covenient to replace the rear wheel.
Easy to maneuver with turning radius.
Grease fitting at all pivotal points to ensure trucks long life and easy control.
Special lowering valve to control the rate of descent and over load by- pass valve to make the trucks durable.
Number of pump strokes-10 . lift height per stroke:12mm.
Reliable oil leak-proof hydraulic system.
use the quality steel
optional handle and wheel
Welding robot for frame and pump make the tuck very strong and nice.
Jinhua Ryder Electrical Technology Co., Ltd(Original Jinhua Crane Equipment Factory)is one of the leading manufacturers and exportors of series of material handling equipment and tools,such as hydraulic hand pallet truck,stackers,scissor lift tables and pipe bender,etc.in China.For about 20 years,she has been developed as a powerful factory with more than 100,000 units of her annual output of her leading products famous as her brand "HEAMI" and "CHIYU".
The products are sold in all over the country and widely sold to more than 30 countries and regions in the overseas market.It has been successively honoured by years as an AAA grade enterprise famous for "Attaching contract,Keeping Credit"by the banks.
We have a strong technical force with over 160 professional employees.The fixed assets are more than 36,000,000 YUAN IN RMB.The factory is wel equipped and can produce more than 1,300 tons every year.The leading product as the series of hydraulic hand pallet truck was authenticated by Germany"TUV" and awarded Germany "GS" and "CE" certificates.This product is the only one up to standard in 14 performances parameters sample survey in 1996.We have already passed the ISO9001:2000 and gained this certificate.The brands as "CHIYU" and "HEAMI" are continuously awarded as the most famous brand in Jinhua city.
We will scrupulously abide by our quality garget as"Permanent Pursuance of Better Quality;Eternal Pursuance of Scientific and Technological Development;Perpetual Promise of Service'.We will sincerely offer our service along with our easy professional material handling equipment and tools.
Our groups of highly trained and experienced engineers oversee all elements of the production process in the purposely-built 100,000-square-meter facility. Injection moulding, die-casting, fabrication and powder coating are just some of the processes conducted in-house.
Quality is our lifeline, and every effort is made to not only meet your expectations but to exceed them. We are constantly striving to improve our own exacting standards, through a process of customer feedback, market research and product development.
We have taken and implemented effective measures and operated strictly according to the "ISO9001 Product Quality Management ". We focus on quality, service, value for money, efficiency and innovation, and use the world's most advanced "EPA" management system. Internationally recognized customers, distributors and OEM orders are all welcome.
For more information about any of our products, please feel free to contact us. We are looking forward to working with you together.
