Quick Details
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: JINHUI
- Model Number: GP
- Type: Selective Pallet Rack
- Material: Steel
- Feature: Corrosion Protection
- Use: Warehouse Rack
- Certification: CE
- Depth: 2.0mm
- Weight Capacity: 1ton per pallet
- Width: 1050mm
- Height: 7500mm
- steel: rack
- certificate: ISO9001
- Color: blue and orange
Packaging & Delivery
| Packaging Details |
Normal Packing: uprights naked packing in the container, beams are packed both ends with cardboards. Rollers are packed separately by cardboards. Customers' special requirement on packing is available. |
|---|
| Delivery Time |
20 days after receipit of deposit payment |
|---|
Specifications

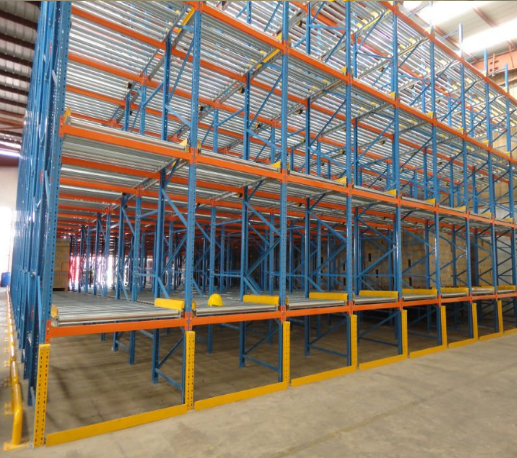

Pallet flow racking :
1.First In First Out ( FIFO )
2.Very High Space Using Rate
3.Powder coated
4.ISO9001
Type: warehouse storage rack/pallet rack/pallet racking
Structure:
1.Pallet racking is of cut-in composite structure;
2.The upright made by continuous punching and rolling; the frame assembled by uprights and bracings.
3.There are safety locks to fix beams and uprights tightly, protecting beams from dropping when loading goods by forklifts.
4.The height of each layer can be adjusted by 75mm freely, the capacity of each layer can be up to 4000kg.
5.It’s convenient to load and unload pallets with goods on by using forklifts; Such forklifts as front-move forklift ,balance-weight forklift,common forklift and etc. Stackers can also be used to load and unload goods.
6.Steel panels, wooden panels and wire mesh decking are available to be put on beams instead of pallets.
7.Pallet racking is the most common storage system used in fields of manfacturing industry,the third part logistics,distribution centers,supermarket and so on.
8.Pallet racking is the first choice for high position warehouses and AS/RS System
Features:
1) Using roller rail system or pallets with roller and the influence of gravity,first in and first out principle for the goods is implemented.
2) Used for storing a large quantity of goods of the same kind.
3) Ensures the full space utilization.
Adopting gravity roller sliding support, no need of other driving devices, reducing cost effectively.
