Quick Details
Description
- Type: Multi-Function Packaging Machine
- Condition: New
- Function: Filling, Sealing, Wrapping
- Application: Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
- Packaging Type: Bags, Film, Foil, Pouch
- Packaging Material: Paper, Plastic
- Automatic Grade: Semi-Automatic
- Driven Type: Electric
- Voltage: 220V/380V
- Power: 2.4KW
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: ZHIEN
- Model Number: ZE-250B
- Dimension(L*W*H): 3770*670*1450mm
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- Machine material: stainless steel or carbon steel
- Film material: OPP/CPP,OPP/CE,PET/PE ect
- Film thickness: 0.04-0.08mm
Product Application

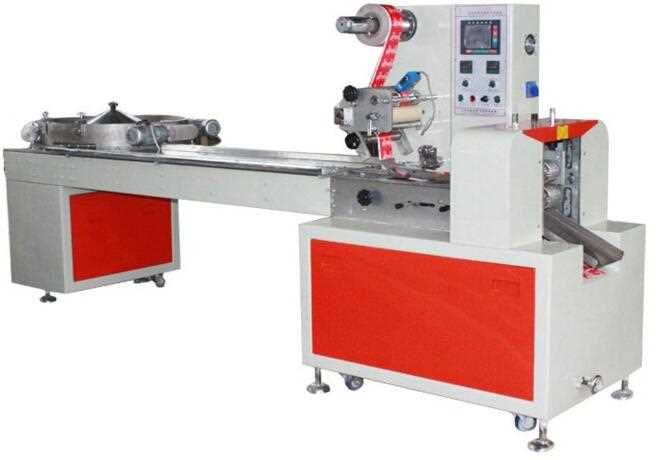

ZE-250B High efficiency packing machine is suitable for packing a variety of candy product in all shape.
Such as marshmallow, cotton candy , compressed facial mask, screws, ect.
The machine automatically finishes the process of filling, bag forming, sealing and date printing.
|
Specification for ZE-250B
|
|
Product height
|
Max.40mm
|
|
Bag length
|
65-190 OR 120-280mm
|
|
Bag width
|
30-110mm
|
|
Film width
|
Max.250mm
|
|
Packing speed
|
30-230 bags / min
|
|
Power supply
|
220V 50Hz / 380V 60Hz
|
|
Machine size
|
3770(L)*670(W)*1450(H) mm
|
|
Machine weight
|
450KG
|
Main Features
A. Double transducer control, flexible bag length cutting.
B. Human-machine operation, convenient and quick parameter setting.
C. Self-diagnostic function, failure can be clearly displayed.
D. High sensitivity optical electric color mark tracking enable accurate bag sealing and cutting.
E. Separate PID temperature controller, suitable for various packing materials.
F. Simpel driving system, reliable performance and convenient maintenance.
G. All the controls are achieved by software, convenient for function adjusting and upgrading.
Foshan Zhien Packing Mahcinery located in PingZhou,
Foshan. A factory that specialized in research & development of packaging machines.
Over past 10 years, we successfully developed a number of series of packing machines and corollary equipments. With rich prpofessional experience, we form a distinctive engineering theory and a brilliant solution for packing system.
Moreover, we have set up a special technical dept. for our cusotmers to enjoy all-around technical support and consulting all the time. Technical cooperation has long been a feature of KingSun. We not only integrate the world-wide advanced technology, but also committed to absorb and master the international techniques for top-ranking products.
In the future, we will focus on high-qualified performance and technical innovation for packing machines to mee the need of our customer all over the world.
