Quick Details
Parameter
brand : clirik
motor type : AC
after sale : aborad engineers
warranty : 1 year
Description

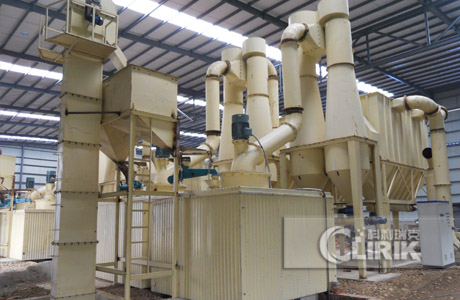

Main Components of HGM series marble pulverizer machine
HGM series mainly consist of main unit, classifier, dust cleaner, powder collector, blower, muffler, hammer crusher (can be replaced by jaw crusher), bucket elevator, sound-proof room, storage hopper, vibrating feeder and so on.
Working Principle of marble pulverizer machine
The crusher will crush the big materials into small ones, and then the elevator will send them to the hopper.
The vibrating feeder will send the materials to the middle of first dial evenly.
The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings.
The rotating turbo in the powder collector will make the coarse materials return to the mill and regrounded, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it.
The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.
Advantages and Features of marble pulverizer machine
l、 High efficiency
2、Long lifecycle of spare parts
3、High safety and reliability
4、 High fineness and flexible adjustment
5、Environment-friendly
Technical data of marble pulverizer machine
|
Model
|
HGM80
|
HGM90
|
HGM100
|
HGM125
|
HGM168L
|
|
Ring Diameter(mm)
|
800
|
900
|
1000
|
1250
|
1680
|
|
Ring Number (PCS)
|
3
|
3-4
|
4
|
4
|
4
|
|
Roller Number(PCS)
|
18-21
|
24-29
|
28-36
|
30-44
|
30-40
|
|
Main Shaft Speed (r. p. min)
|
230-240
|
200-220
|
180-200
|
135-155
|
120-130
|
|
Finished Size (um/mesh)
|
74-5
(200-2500)
|
74-5
(200-2500)
|
74-5
(200-2500)
|
100-6
(150-2000)
|
100-9
(150-1500)
|
|
Capacity (t/h)
|
0.4-4.5
|
0.6-6.5
|
1-9
|
2-16
|
3.8-30
|
|
Outlet Size L*W*H (m)
|
13.9*4*6.2
|
14.7*4.8*7.2
|
18*4.6*8.6
|
14*9*10.25
|
26.3*7.5*11.9
|
HANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.
