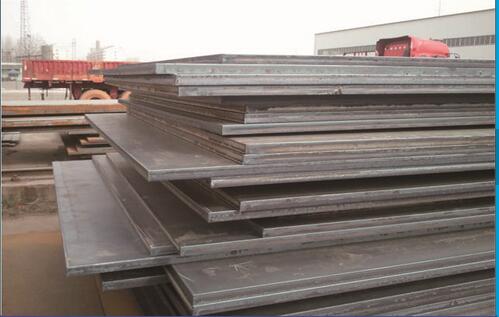

High Quality Hot Rolled 30crmnsia Steel Plate

The larger the important of carburized parts commonly used in the manufacturing of high hardness, high strength, high toughness (its requirements are higher than 15CrMnMo), such as crankshaft, camshaft, connecting rod, a gear shaft, a gear, a pin shaft, can also be used in place of 12Cr2Ni4.

Product Details

Quick Details

Description

Standard:AISI, ASTM, BS, DIN, GB, JIS
Grade:30crmnsia
Thickness:1-200mm
Place of Origin:Liaoning, China (Mainland)
Brand Name:Dongbei Tegang
Model Number:30crmnsia
Type:Steel Plate
Technique:Hot Rolled
Surface Treatment:Galvanized
Application:Flange Plate
Special Use:High-strength Steel Plate
Width:1-2.5m
Length:2-12m
Heat treatment:Quenched,Tempered,annealed
Trade Term:EXW,FOB,CIF
Payments:T/T or L/C at sight
MOQ:1 Ton
Packaging & Delivery
Packaging Details:According to export standars or customers' requiremtnts
Delivery Time:IN 30 DAYS AFTER WE RECEIVE 30% DEPOSIT

Material

30CRMNSIA

Chemical Composition

Mechanical Properties(In Quenched & Tempered State)

C

0.17-0.23

Tensile strength(MPA)

1180

Si

0.17-0.37

Yield strength (MPA)

885

Mn

0.90-1.20

Elongation(δ5/%)

10

Cu

0.030

Reduction in Area (ψ/%)

45

Mo

0.20-0.30

Impact  (J)

55

P

0.035



Hardness

 217HBS

S

0.035

Cr

1.10-1.40

Ni

0.030

V

-



Alloy Steel

5140,5115,5120,5130,5145,4118,4130,4135,6150,5115,4142,4130,4118,6150,4140,4720,4320

,E9310,8620,4340

Tool Steel

H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419,

SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2

Bearing Steel

GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50

Spring Steel

9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150,

SUP10,51CrV4,1.8159

Stainless Steel

321,sus321,1.4541,304,SUS304,1.4301,410,SUS410,1.4006,420,1.4021,1.4028,

434,1.4113,316L,SUS316L,1.4435,630,1.4542,431,1.4057,201,202,301

 High Quality Hot Rolled 30crmnsia Steel Plate

High Quality Hot Rolled 30crmnsia Steel Plate

High Quality Hot Rolled 30crmnsia Steel Plate

Company Profile

Sichuan Liaofu Special Steel Trading Co., Ltd is the biggest agent of DONGBEI SPECIAL STEEL GROUP CO.,LTD that is the biggest special steel produce base in China.At the same time,It is also the franchiser of BAOSTEEL,TISCO,XINING SPECIAL STEEL,SHOUGANG GROUP,WISCO ETC.Sichuan Liaofu Special Steel Trading Co., Ltd is located in Liangli Steel City, the biggest electromechanical and steel trading center in the west of China, in Chengdu.We have been in this business for 9 years and are proud to have established a terrific reputation and brand loyal customers.Now Our company have very strong ability.We have set up a branch company in Chengdu,which is Sichuan Jinyu Trading Co.,Ltd.At the same time,we also have own office in Chongqing.
Our company mainly specialises in exporting of special steel, including alloy steel,spring steel ,stainless steel, tool steel, die steel, bearing steel. And in shapes, we provide steel round bar, steel square bar, steel flat bar, steel plate, steel sheet, steel coil, steel wire, and steel pipe.The three main products in our company are special alloy(high temperature alloy and titanium alloy ),Tool&die steel and Automotive high-grade steel.The Six pillar brand products in our company are special steel,ultra-high strength steel,tool&die steel,square&flat steel,special stainless steel and alloy tube.What's more,the stainless steel,bearing steel and the automotive steel have already arrived at the leading level in China.However, Both tool steel and die steel are the first brand ,which has the biggest market share in china,and have good reputation in domestic and oversea market.In addition,the size,specification and the inner quality are the first in china,approaching to world's advanced level.

Being the top-class products in China, our products have been used in all kinds of areas, such as aviation,aerospace,navigation,nuclear energy,chemical industry,electronic information, machine manufacture, petrochemical, automotive,instrument and meter, communication, transportation, and medical instruments, etc. Our products are sold all over the world, mainly in America,Germany,the United Kingdom,Australia,Korea,Southeast Asia.
Welcome to visit our site, and ask any questions that confuse you. We provide the best products and service with our passion, integrity, and sincerity.
