Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Saip/Saipwell
- Model Number: HY10W-24
- ambient air temperature: -40℃ to +40℃
- The altitude above sea level: <1000m
- AC system frequency: 50HZ or 60HZ
- maximum wind speed: <35m/s
- earthquake intensity: <7°
Normal operating conditions:
The ambient air temperature is between -40°C to +40 °C
The altitude above sea level does not exceed 1000m. (The plateau area should be mentioned before order.)
AC system frequency is 50HZ or 60HZ.
The long-term exerting working voltage of the arrester does not exceed the maximum continuous operation voltage.
The maximum wind speed is less than 35m/s.
The earthquake intensity is under 7 degrees.
(The filthy area should be mentioned.)

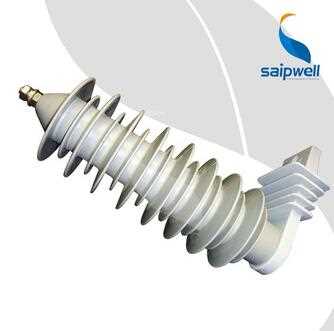

The advantages of 24KV polymer housed lightning arresters:
Reduced size
Light weight
Enhanced safety
The characteristics of 24KV polymer housed lightning arresters:
The 24KV Saipwell polymer housed lightning arrester adopts the industry recognized superior polymeric material — silicone rubber as housing and uses Metal Oxide Varistors (MOVs) as core. So it has excellent electrical properties and provide superior overvoltage protection for MV distribution systems.
Manufacturing our own MOV disks allows strict quality control over the manufacturing process from start to finish. These MOV disks have proven their reliability and protective abilities through years of in-service use.
Saipwell silicone rubber housed arresters are available in 5 kA and 10 kA Class 1 IEC 60099-4 designs.
Technical parameter:
|
Model
|
Arrester Rated Voltage
|
MCOV
|
1/10μs Steep Current Impulse
|
8/20μs Lightning Current Impulse
|
30/60μs Switching Current Impulse
|
2ms Rectangular Current Impulse
|
4/10μs High Current Impulse
|
|
kV(r.m.s)
|
|
<kV
|
|
A
|
kA
|
|
HY10W-12
|
12
|
10.2
|
38.5
|
33
|
29
|
250
|
100
|
|
HY10W-15
|
15
|
12.7
|
46.5
|
41
|
35
|
250
|
100
|
|
HY10W-18
|
18
|
15.3
|
56
|
49
|
42.5
|
250
|
100
|
|
HY10W-21
|
21
|
17
|
65.5
|
57
|
49.5
|
250
|
100
|
|
HY10W-24
|
24
|
19.5
|
75
|
65
|
56
|
250
|
100
|
|
HY10W-27
|
27
|
22
|
84
|
74
|
63.5
|
250
|
100
|
|
HY10W-30
|
30
|
24.4
|
93
|
82
|
72
|
250
|
100
|
|
HY10W-33
|
33
|
27.5
|
101
|
90
|
79
|
250
|
100
|
|
HY10W-36
|
36
|
29
|
112
|
98
|
84
|
250
|
100
|
