Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: Liyond
- Model Number: HXGN15-12
- Rated Voltage: 12KV
- Rated frequency: 50 Hz
- Rated current: 630A
Summary

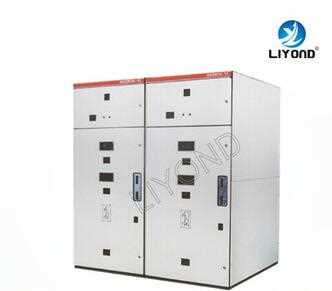

HXGN15-12 outdoor metal-clad ring main unit switchgear (intelligent type) applies to three
phase AC system with rated voltage 12kV, rated frequency 5oHz, rated current 63oA and for
ring network electricity supply and radiation terminal power supply that used as cable line
sectionalizing, branch connection. It is equipped with SF6 gas insulating multiloop power
unit and feeder terminal device FTU that imported from . It has functions of remote
signaling, telemetry, remote control and fault current detection. This device is mainly used
as distribution automation system for city power supply load center and cable supply.
Main Characteristics
1.The framework of cabinet is assembly type. It is stable and reliable with convenient assem-
bly. It could be able to form ring net unit and other connection modes.
2.lt is with small size, light weight, small footprint, and easy installation.
3.The ring main unit has barbar room, switch room, control room that separately divided and
in secure state. The cabinet and all components has reliable earthing connection to make
sure the personal safety of operating and maintenance workers.
4.The ring main unit could be equipped with FN12-12D, FN25-12D load switch.
5.The mechanical interlock is advanced and reliable, which could satisfy the requirements of
five-anti protection.
Cabinet outline dimensions(mm)(not including door)
|
Height
|
width
|
Depth
|
|
2000
|
700
|
900
|
|
2000
|
900
|
900
|
Advantages:
good compatibility, stable and reliable performance, free maintenance and long service life, is old-fashioned contactor is the ideal substitute of products.
