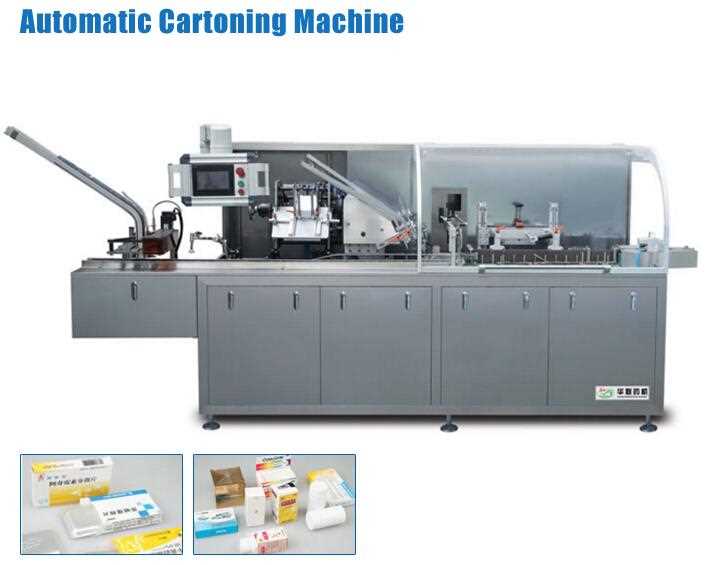

HUALIAN New Arrival Product Full Auto Color Paper Carton Box Packing Machine

Type:Other, Cartoning Packing Machine

Condition:New

Application:Chemical, Commodity, Food, Medical

Packaging Type:Cartons

Packaging Material:Paper

Automatic Grade:Automatic

Driven Type:Electric

Voltage:380V 50HZ

Power:1.5kw

Place of Origin:Zhejiang, China (Mainland)

Brand Name:HUALIAN

Model Number:ZHJ-150

Weight:1500kg

Dimension(L*W*H):3300*1200*1700mm

Certification:CE ISO9001

After-sales Service Provided:Engineers available to service machinery overseas

Product Name:Cartoning Machine

Material:Stainless Steel

Production capacity:≤150 boxes/min

Size of box(L*W*H):(50-190)*(25-90)*(15-70)mm

Specification of box:250-300g/m 2

Size of leaflet(L*W):(110-260)*(100-180)mm

Specification of leaflet:55-70g/m 2

Air Consumption:10m 3 /h

Function:Packing Filling

This machine is suitable for packing blisters, tubes ampoules and other related objeces into boxes intermittently. The higjest speed can up to 150boxes/min.

It has advantage of high packing efficiency and good quality. This machine can fold leafIet, open box, insert blister into box, emboss batch number and close

box automatically. It adopts inverter to adjust speed, human machine interface to operate, PLC to control. and photoelectric to monitor and control each

station automatically, so that once something unexpected happen, it will stop and display the reasons automatically, which can solve the troubules in time.

This machine can be used separately andalso can be linked together machine to be a Production line. Note: this machine canalso equip with hot meltgluedevice

to do hot melt glus sealing for box.

Hualian Pharmaceutical machinery is specialized in the research, production and relevant service in the automatic packing machines of pharmaceutical,medical and food industries. We are the founder enterprise of the flat type blister packing machine and automatic cartoning machine in China. Our major products include: blister packing machines, automatic cartoning machines, tube filling and sealing machine, capsule filling machine, pre-made bag packing machine, high efficient film coating machine, and automatic intelligent integrated machine production lines.
The Board Chairman Yuan Huanchun, who was born of a mechanical family, as one of the ten inventing entrepreneurs in Zhejiang Province and a top professional engineer in Wenzhou City, has experienced knowledge in automatc machinery. He lead our team and invented 58 patents (some of them are rewarded as Chinese great patents and Wenzhou significant inventions). We have got the technology innovation bonus five times from our government (we got the technology innovation bonus in 2008 for the full procession computer control packing production line for pills ). We won the second prize in 6 field in technology improving, got the local technical award 29 times. Five of them have been listed in the domestic significant new product, two of them in state torch program, three of them in national lighting program. province patent productive project, province equipment major field first product.,
Our company started from 1986, successful developing the flat type blister packing machine and automatic cartoning machine during 1989-1993, establishing our Rui'an pharmaceutical machinery indusry company in 1994, passing the ISO9001 international quality system certification, CQM and CE in 1999. In 2004, we established our Rui'an Imp&Exp trading company that was in charge of trading and aftersale service, and helped us run the company in group mode. In 2010,Our new factory in feiyun new area put into use,where had more than 55 thousand square meters land, 90 thousand square meters of building area and has workshops of 12 meters high, which greatly improved our productiveness.
After 30 years delevoping. Now We have been one of the most well-known suppliors in automatic pharmaceutical and medical packing machines in the world. Our machines have been receiving positive feedback from our customers and have been sold to more than 5000 customers in domestic such as: Yangtze River, Hisun, Minsheng, Xiuzheng, Conba, Sanjin, Jiuzhitang, Dong'e, Wahaha, Mengniu, Yili, Tuoren, Wego, Kandelai, Avon. and exported to US, Mexico, Brazil, Argentina, UK, Germany, France, Spain, Russia, Poland, Finland, Serbia, Ukraine, Turkey,Iran, Syria ,Saudi Arabia, UAE, Jordan, India, Pakistan, Bangladesh, Indonesia, Malasia, Egypt, Nigeria, South Africa, Thailand, Philippines, South Korea, Japan and other countries all over the world.
"Hualian" will keep "Technology innovation, Brand strategy, High quality products, Best service supply" as our policy and promise. We warmly welcome all friends to cooperate with us sincerely, hand in hand to make prosperous future!
