Quick Details
Description
Standard: AISI, ASTM, BS, DIN, DIN 536
Grade: R900A
Rail Heigth: 100mm
Bottom Width: 200mm, 200mm
Web Thickness: 60mm, 60mm
Head Width: 100mm
Length: 12m, 10m to 12m
Place of Origin: Hebei, China (Mainland)
Brand Name: Tanggang
Model Number: A100
Type: Heavy Rail, A100
Application: Crane rail
Weight: 75.2 kg/m
Secondary Or Not: Non-secondary
Bolt Hole Diameter: non

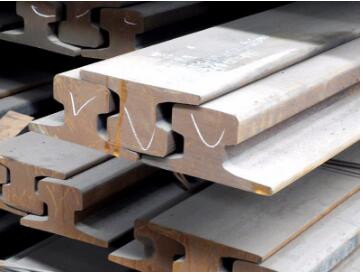

Product name: Crane rail
Head width: 100mm
Higth: 95mm
Unit weight: 74.3 kg/m
Material: 900A
Packaging & Delivery
| Packaging Details |
In bulk or Container |
|---|
| Delivery Time |
10 days |
|---|
The specification as below:
| Rail Type |
Rail Height |
Flange Width |
Head Width at Top |
Head Width at Base |
Head Height |
Web Thickness |
Flange Thickness at Edge |
Flange Thickness at Center |
Weight (per meter) |
| RH |
FW |
HT |
HB |
HH |
WT |
FE |
FM |
kg |
| A55 rail |
65 |
150 |
55 |
55 |
28.5 |
31 |
9 |
17.5 |
32 |
| A65 rail |
75 |
175 |
65 |
65 |
34 |
38 |
10 |
20 |
43.5 |
| A75 rail |
75 |
200 |
75 |
75 |
39.5 |
45 |
11 |
22 |
56.6 |
| A100 rail |
100 |
200 |
100 |
100 |
45.5 |
60 |
12 |
23 |
75.2 |
| A120 rail |
105 |
220 |
120 |
120 |
55.5 |
72 |
12 |
30 |
101.3
|
Our company is focus on Metal extraction and melting technology, we can get metal or alloy by physical process or chemical process, we can supply the equipment, chemical reagent and technology.
On physical process, our product is Electric ARC furnace (EAF), it can melt scrap steel and other metal or nonmetal, to produce casing steel, special steel, all kinds of Ferro alloys and other materials.

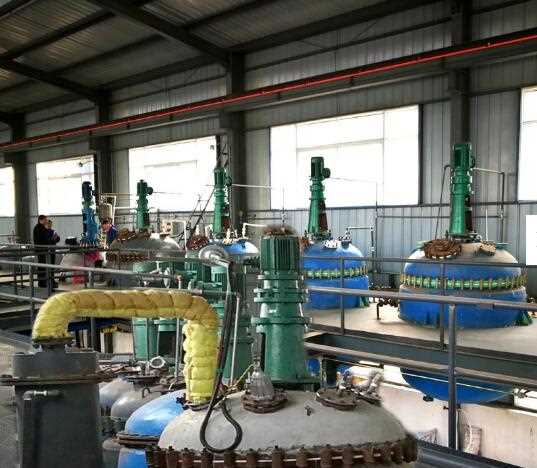

On chemical process, we produce Copper leaching solvent and Nickel Cobalt separation reagent, also can separate rare earth materials, these are our patented products.
We understand the complex technology and professional language, can solve your requirement and finish the turnkey project successfully.
We are finding sales agent all the world, because you can have better communication with customer than us in your area, whether language or technology, or relationship, you can introduce our products clearly, welcome your cooperation!
We have dealt with overseas customers for a long time, have rich experiences to solve any problem, the effective communication will solve the difficult in language and technology, and make the products realized perfectly.
We understand that credit is very important for us, also we think that if you deal with us which means you trust us, every deal means you are inspecting our credit, so it will impel us to do every deal perfectly.
