Quick Details
Description
- Type: Wrapping Machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Food, Machinery & Hardware, Medical, Textiles
- Packaging Type: Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
- Packaging Material: Glass, Metal, Paper, Plastic, Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: AC 220/380V 3PH 50/60Hz
- Power: 20KW
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: Surfon
- Model Number: GH-6030AC+SF-6040E
- Dimension(L*W*H): 4550x1000x2105mm
- Weight: 1300/1200kg(G/N)
- Certification: CE , ISO
- After-sales Service Provided: Engineers available to service machinery overseas

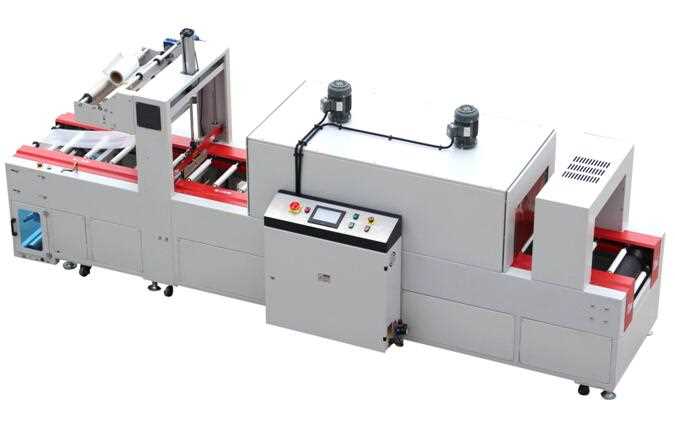

- Name: Fully-Auto Round Sleeve Sealer Shrink Packing Machine
- Max Packing Size L*W*H: 300*300*300mm
- Packing Speed: 0~12m/minute
- Shrin Film: PE
- Temperature: 0~300℃
Features
l GH-6030AC + SF-6040E Fully-auto sleeve sealer and shrink tunnel is designed for a single round object. This machine can connect production line to make automatic feeding, wrapping, sealing, shrinking and cooling to achieve unmanned production;
l GH-6030AC introduces internationally advanced technology and production process. The performance is reliable and can automatically calculate the daily output;
l It is a professional sealing and shrink equipment that specifically designed for welding consumables industry. Induction film-feeding greatly reduces the waste of film;
l Original Autonics digital temperature controller with precise temperature can show the temperature status when sealing;
l Mechanical step less speed control device to adjust the speed of the feed conveyor;
l The usage of Fatek PLC and touch screen to achieve the integrations of mechanism, electricity and pneumatic;
l Using a specially designed three-piece sealing knife keeps solid sealing line, no cracking and anti-sticking;
l Feeding conveyor is customized for the wire with straight feeding;
l SF-6040E using imported double air circulation motors so that the hot air in the oven can spread more evenly to get a good shrink effect
l The use of frequency inverter controls transmission speed which has the function of infinitive speed;
l Large amount of cooling air flow, rapidly cooling the product after hot shrinking;
l The singleshrink packaging equipment is suitable of welding industry with the advantages of anti-moisture, anti-rust and extending the welding consumables storage period.
Techniacl Parameter
|
Model
|
GH-6030AC+ SF-6040E
|
|
Power
|
20kw
|
|
Power Supply
|
AC380/220V 3 PH 50/60Hz
|
|
Max Packing Size L×W×H
|
300×300×300mm
|
|
Tunnel Size W×H
|
600×400
|
|
Blade Length
|
670mm
|
|
Air Temperature
|
0-300℃
|
|
Table Height
|
850±50mm
|
|
Packing Speed
|
0-12m/min.
|
|
External Air Source
|
6-8kg/cm2
|
|
Shrink Film
|
PE
|
|
Machine Size L×W×H
|
4500×950×1955mm
|
|
Packaging Size L×W×H
|
4550×1000×2105mm
|
|
G./N. Weight
|
1300/1200kgs
|
