Quick Details
Description
- Type: Wrapping Machine, Packing Machine
- Condition: New
- Application: Commodity, Machinery & Hardware
- Packaging Type: Film
- Packaging Material: Paper, Plastic, Other
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V 50HZ
- Power: 9kw
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: JINGLIN
- Model Number: GG Series
- Certification: CE, ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas
APPLICATION:

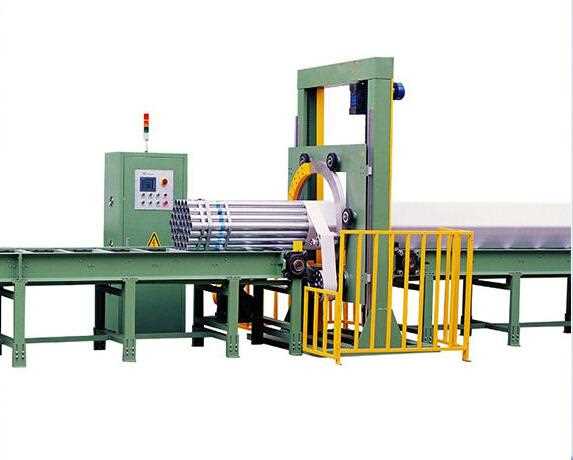

GG series Steel bar wrapping machine for horizontal was designed mainly for metallurgical industries. The machine could be widely used in the exterior wrapping of horizontal shapes such as steel bar/pipe/tube, stainless steel tube,aluminum tube,rubber tube, shapes like bar floor board & etc.
FEATURES:
PLC & HMI are adopted.
Double-ring & double-rub wheel devices make working more safe stable & energetic.
Special conveying device is easy for loading & conveying the package strengthens the transfer capacity.
Wide packing belt can be used for cutting the packing cost & making the work more efficiency.
Indicator alarms automatically when trouble occurs. Trouble can be shown.
Photocell sensor is adopted for setting packing position.
The turning ring is controlled by converter. Overlap rate could be adjusted according to the requirement.
Height of the ring centre could be adjusted.
Separate control panel makes operation & maintenance easily.
Material tension could be adjusted automatically.
TECHNICAI DATA:
|
ITEMS
|
GG500
|
GG800
|
GG1000
|
GG1600
|
|
Package width
|
100-500mm
|
100-800mm
|
100-1000mm
|
100-1600mm
|
|
Package length
|
Not limited
|
Not limited
|
Not limited
|
Not limited
|
|
Conveyer length
|
9000mm*2
Or on request
|
9000mm*2
Or on request
|
9000mm*2
Or on request
|
9000mm*2
Or on request
|
|
Conveying speed
|
About 8m/min
|
About 7m/min
|
About 6m/min
|
About 4m/min
|
|
Rotating speed
|
About 60r/min
|
About 50r/min
|
About 45r/min
|
About 30r/min
|
|
Conveyer height
|
800mm
|
1000mm
|
1000mm
|
1200mm
|
|
Max loading
|
2000kg
|
3000kg
|
4000kg
|
5000kg
|
|
Overlap scope
|
About 30%-70%
|
About 30%-70%
|
About 30%-70%
|
About 30%-70%
|
|
Power output
|
About 7kw
|
About 9kw
|
About 12kw
|
About 16kw
|
|
Power voltage
|
380V/3phase/50Hz
|
380V/3phase/ 50Hz
|
380V/ 3phase/50Hz
|
380V/3phase/50Hz
|
|
Material
|
Compound paper tape/knit tape/anti-rust tape/waterproof tape/
stretch film/flax
|
Compound paper tape/knit tape/anti-rust tape/waterproof tape/
stretch film/flax
|
Compound paper tape/knit tape/anti-rust tape/waterproof tape/
stretch film/flax
|
Compound paper tape/knit tape/anti-rust tape/waterproof tape/
stretch film/flax
|
|
Material size
|
width:≤250mm
Max OD:400mm
ID:55mm
|
width:≤250mm
Max OD:400mm
ID:55mm
|
width:≤250mm
Max OD:400mm
ID:55mm
|
width:≤250mm
Max OD:400mm
ID:55mm
|
Established in 1998, Shanghai Jinglin Packaging Machinery Co., Ltd. is a professional manufacturer specializing in designing, manufacturing and marketing of coil packaging machinery,ring wraper,orbital wrapper. With years of professional experience and continuous research, we have established sales network worldwide and won well-known customers. Our products have also won a good reputation both at home and abroad.
Our qualification for your reference:
*CE Certificate.
*ISO9001:2000 certified.
*Expert manufacturer with more than 10 years' experience in the field
*Can provide high-quality products
*Can provide update and powerful technical support
*Long-term, reliable and friendly partnership
Products available: pallet wrappers, metal coil wrapping machines, steel pipe wrapping machines, copper coil wrapping machines and others
