• GB Standard heavy steel rail
  • GB Standard heavy steel rail

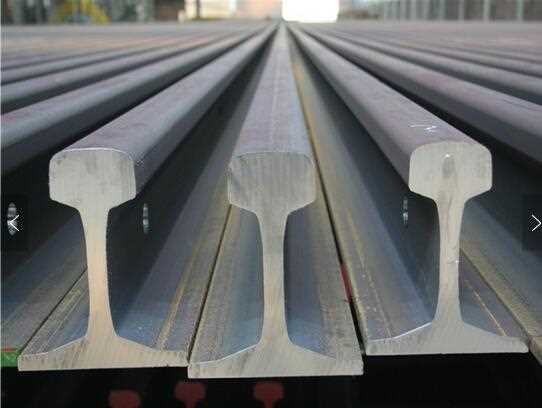

GB Standard heavy steel rail

The rail is the main component of the railway track;Its function is to guide the wheels of the locomotive forward, bear the enormous pressure of the wheel, and passed to the sleeper.

Product Details

Quick Details

Description

Standard:AISI, ASTM, BS, DIN, GB, JIS, GB
Grade:Q235/55Q/U71Mn/75V/50Mn/45Mn
Rail Heigth:69.85-185.74mm
Bottom Width:69.85-152.4mm
Web Thickness:5.9-44mm
Head Width:25-120mm
Length:6-12m
Place of Origin:Henan, China (Mainland)
Brand Name:Hnjsjs
Model Number:Q235 900A 700A U71Mn
Type:Heavy Rail
Application:Railway Rail, Rail Maintenance
Weight:8.42-118.1KG/M
Secondary Or Not:Non-secondary
Bolt Hole Diameter:GB Standard
Name:railway steel rail
Certificate:ISO9001:2008
Surface:Plain
Usage:Rail Installation
Keyword:steel rail
Quality Control:Inspection
Other name:heavy steel rail for sale
Packaging & Delivery
Packaging Details:According to customers' requirement
Delivery Time:According to customers' requirement

Project number

Name

Specifications

Material Science

1

Fishbolt

22×135/24×135/ 24×145

Q235

2

High strength bolt

22×135/24×135/ 24×145

C45

3

Insulated bolt

22×160/24×160/ 24×170

C45

5

Flat washer

6×25×50

Q235

6

Spring washer

20×8/24× 8/26 × 8



7

Spike

16×165



8

Screw spike

M22×185 M24×195

Q235

9

Steel plate / floor



QT450-10

10

Fish plate

43Kg/50Kg/60Kg/75Kg

B7/45#





BS60,BS75R,BS80A BS90A

B6/B7

11

Fish plate insulation

43Kg/50Kg/60Kg/75Kg

B6/B7





UIC60 UIC54

50#/45#

GB Standard heavy steel rail



GB Standard heavy steel rail

Company Profile

Founded in 2004 during the past 14 years, Henan Jian Shen Metal Co. Ltd. has always been committed to manufacturing railway equipments and accessories, which provide high-grade rail spares solutions and high-end equipment for railways. Just as careful production process, Henan Jian Shen Metal Co., Ltd. has now become a high-tech enterprise integrating research, production, sales and services after years of steady development, shining brilliantly in the international market as an iconic enterprise among China's railway parts industry.
Our vision - TO be a supplier of choice in the rail spares industries as well as OEM manufacturing with the emphasis of being lowest in cost and highest in customer satisfaction and quality.
