Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Beverage, Chemical, Commodity, Food, Medical
- Packaging Type: Bottles
- Packaging Material: Glass, Metal, Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V/110V
- Power: 1kw
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: chengxin
- Model Number: CJY
- Dimension(L*W*H): 2100*1140*1520mm
- Weight: 300kg
- Certification: ISO
- After-sales Service Provided: Engineers available to service machinery overseas
- Filling range: 20-5000ml
- Discharge nozzle: two four six eight
|
Some data about the machine
|
|
Technical Data
|
Air pressure
|
0.4--0.6Mpa
|
|
Filling accuracy
|
≤±1%
|
|
Fillling speed
|
5--60(Bottles/min)
|
|
Double nozzles liquid filling machine
|
20-200ml 50-500ml 100-1000ml 2923 USD
|
|
260-2600ml 3077 USD
|
|
500-5000ml 3385 USD
|
|
Four nozzles liquid filling machine
|
20-200ml 50-500ml 100-1000ml 3539 USD
|
|
260-2600ml 3846 USD
|
|
500-5000ml 4462 USD
|
|
Six nozzles liquid filling machine
|
20-200ml 50-500ml 100-1000ml 4000 USD
|
|
260-2600ml 4769 USD
|
|
500-5000ml 5692 USD
|
|
Eight nozzles liquid filling machine
|
20-200ml 50-500ml 100-1000ml 5076 USD
|
|
260-2600ml 5846 USD
|
|
500-5000ml 7385 USD
|
Product profile

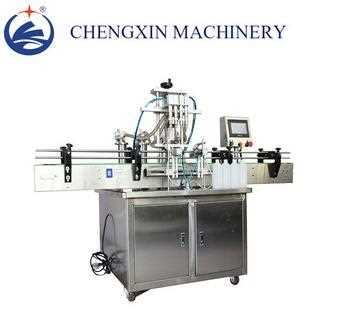

CJY automatic piston type liquid filling machine
This series of liquid filling machine is applicable to daily chemical, food, oil, medicine, pesticide and other industries, and can fill different types of liquid products. The piston type straight line filling has the advantages of high filling accuracy, convenient installation and debugging, easy cleaning and maintenance, no drip, etc.. The material contact parts are made of 304 stainless steel (316L stainless steel can be customized), all stainless steel frame, clean and tidy, elegant appearance and so on. Taiwan PLC control, touch-screen man-machine interface, Germany sick light eye, Germany FESTO, Taiwan AirTac and other imported components, so that the filling machine has stable performance, flexible operation of outstanding performance.
Wenzhou Cheng Xin Packaging Machinery Co., Ltd. specializing in the production of various kinds of packaging machinery and food machinery and other products. Company has strong technical strength, well-equipped, with development, production, sale and after-sales service of a complete system. Has been committed to the development of a variety of food machinery and packaging machinery. Sealing machine, filling machine, pad printing machine, shrinkage machine, coding machine, vacuum machine, folding machine. Products sold in the provinces, municipalities and autonomous regions, and exported to Eastern Europe, South America and Southeast asia.
The company engaged in packaging machinery, strong technical force, experienced, reliable mechanical performance, beautiful appearance, well received by customers at home and abroad.
The company has always been adhering to the "excellence, unremitting self-improvement" development philosophy, continuous innovation, has always been to develop creative efforts for the goal of enterprise, adhere to is the production of pneumatic filling machine, filling machine, filling machine, electric manual filling machine, filling machine, pedal tying machine, filling machine, vacuum type filling machine vertical oil filling machine, filling machine, filling machine, cosmetics packaging machine, shrink machine, line filling machine, automatic labeling machine products such as professional production and processing company, has a complete and scientific quality management system. Wenzhou chenggxin Packaging Machinery Co., Ltd. good faith, strength and product quality recognized by the industry. Welcome friends from all walks of life come to visit, guidance and business negotiation.
