Quick Details
Description

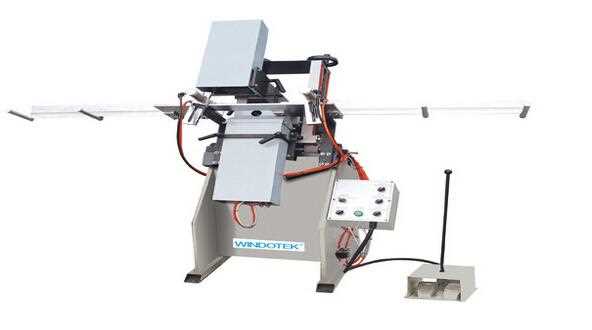

Four Axis Water Slot Milling Machine LXC01-4
Function:
UPVC Window Fabricating Machine. Milling all kinds of water slots and air pressure balance grooves.
Features:
Full design with high rigidity, processing beautiful water slot, high appearance quality.
Automatic cutter changer on the under head, one time clamp, two end water slots processing.
Special feeding system, need no special maintenance, high milling quality.
Convenient adjustment for the cutter location to meet different kinds of profiles.
Water slot milling length adjustable within 100mm, wide adaptability.
Adopt linear bearing motion to ensure the processing precision.
Parameter:
|
Air Pressure:
|
0.5MPa~0.8MPa
|
|
Air Consumption:
|
30L/min
|
|
Input Voltage:
|
220V 50Hz
|
|
Input Power:
|
1.14KW
|
|
Main-shaft Revolution:
|
25000r/min
|
|
Cutter Diameter:
|
5mm 8mm
|
|
Slot Length:
|
0~100mm
|
|
Overall Dimension:
|
1200mmx1200mmx1800mm
|
|
Weight:
|
300kg
|
Windotek is a leading company of specializing in manufacturing and exporting upvc & aluminum window and door machines and Insulating Glass Machine in the market, adopting German Technology to be produced in China, supply to the customer high quality machine with economical price.
Windotek team has many years of experience of manufacturing upvc & aluminum window and door machines and IG machine, and the knowledge of upvc & aluminum window and door fabrication process, to supply the customers with latest newly designed machines which can produce the high quality window and door in the market, such as Four Point Welding Machine with CNC Corner Cleaning Machine, Screw Drilling/Fastening Machine, Steel Enforcement Rolling Machine, Aluminium Profile Bending Machine CNC, Automatic Heavy Duty Cutting Saw.
Windotek is to provide solution for upvc & aluminum window and door industry with high quality machine and reliable after sales service. We have supplied the machines to different countries and areas, such as Europe, Russia, India, Thailand, Vietnam, Philippines, America etc. We have set up Indian office for offering the local service in Indian market.
