Overview:

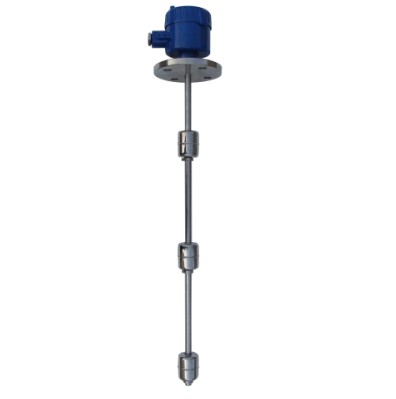

MTUQK-10 series float level switches have the function of alarm and control for single-point or multi-point liquid level of varies of medium within kinds of opened or sealed containers. They are widely used in petrochemical, textile, printing and dyeing, environment protection and civil industry, etc. This kind of instrument is simply structured, easily mounted and low cost.
Technical Parameters:
Operation Temperature: -20-100℃
Ambient Temperature : -40-70℃
Working Pressure: 0-1.0Mpa
Medium Density: ≥0.68g/cm3
Output Signal: SPST or SPDT reed contacts
Contact Capacity: 1A /220VAC; 5A /24VDC
Switch Life: 5×104 times
Electrical Interface: M20×1.5 internal thread
Explosion-proof Grade: EX dllCT6, EX ia llCT4-6
Protection Grade: IP65
Process Connection: HG20592-20635-97 DN50 min Flange
Other Flange Standard (GB, JB/T, HGJ, ANSI, DIN, etc) should be confirmed when ordering
Wetted Material: Stainless steel; PP; PTFE
Junction Box Material: Aluminum alloy
