Quick Details
Description

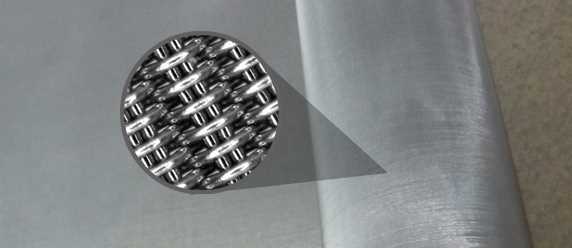

First class AISI 304 Fileter stainless steel wire mesh：
Introduction:
The plain weave wire mesh is the most commonly used and simplest wire cloth weave. Usually the wire materials are stainless steel wire 304, 304 L, 316, 316 L, 310, 314 and 410. Each warp wire (wire running-
parallel to length of cloth) passes alternately over and under the wires running traversely through the cloth
at 90 degree angles. 304 grade stainless steel wire mesh offers high filtering efficiency, low pressure loss,
constant mesh opening, good dimensional stability, high open surface area and good fireproof property.
|
material
|
SUS stainless steel 304, 316, 316L,etc.
|
|
weaving
|
plain, twill, dutch
|
|
mesh
|
1-3500 mesh
|
|
wire dia
|
0.015-2.03mm
|
|
roll size
|
1.0x30m, 1.2x30m, 1.8x30m, 2.0x30m, etc.
|
|
features
|
Acid-Resistance.
Alkali-Resistance.
High Temperature resistance.
Wear resistance.
|
|
usage
|
filter
|
|
stock
|
we have it in stock
|
|
sample
|
avilable
|
|
WEICOME TO OUR FACTORY AT ANY TIME!
|
Material:
*SUS 430:Non Nickel and have Magnetic
*SUS 202 : non-magnetic, low anti-corrosion resistance;
*SUS 304/304L : low -magnetic,good anti-corrosion resistance;
*SUS 316/316L : low-magnetic,better anti-corrosion resistance;
*SUS 310s: anti-oxidization,anti-corrosive and high temperature resistance
Mesh count:
*SUS 202/310s suitable for mesh count from 1 to 100( plain weave)
*SUS 304/304L suitable for mesh count from 1 to 400(plain/dutch weave)
*SUS 316/316L 430 suitable for mesh count from 1 to 600(plain/twill/dutch weave)
Applications:
The AISI 304 Fileter stainless steel wire mesh can be used for air conditioning, lampblack machine, washing
machine,auto launch system, fuel tank, filter, blower, water tank, air purifiers, water pumps,
faucet, medical, sugar, baking booth, aquatic animals, vacuum cleaner, coffee machine,
centrifugal machine, compressor, SMT machine, water purifier, direct drinking machine, filter,
excavator, and so on.
Founded in 1987, our company is a professional manufacturer of polyester printing mesh, polyester filter belt and stainless steel mesh.
Our company is located in Langfang City, and the factory is located in Anping County-the famous Wire Mesh Land of China, with a land area of 40,000 square meters, a construction area of 13,000 square meters. Our company has 83 sets of P7100 & P7150 Sulzer polyester printing mesh weaving looms, 23 sets of Sweden Texo polyester dryer fabric looms, 50 sets of Japanese GRS1300 wire mesh looms, and 46 sets of other machines and devices including automatic warp arranging machine, heat setting machine, Austrian automatic seaming machine and other test facilities.
With more than 20 years' development, PFM is not only professional in fields of polyester mesh and stainless steel mesh, but also in wire mesh filters and fiberglass meshes. Our strong R&D capability (56 engineers and technicians) enables us to innovate almost every day. So the customized orders are available.
