Quick Details
Description
Product Description

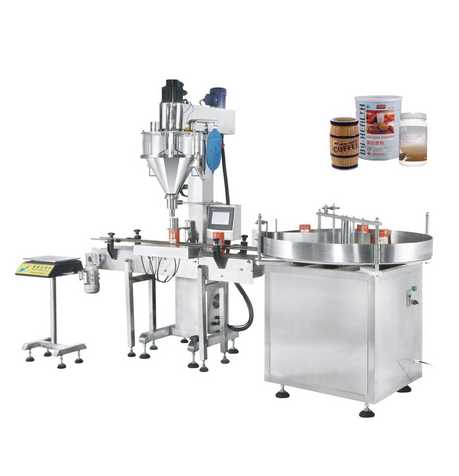

Auger Powder Filling Machine was designed in terms of the National GMP Standard. The hopper is sheel, The dust can be collected. And the working table height adjustable. Over 10 recipes can be saved for later using. The machine is suitable for packaging powdery product, for instance, milk powder, feed, rice, powder, icing sugar coffee, monosodium glutamate, solid medicament, etc
Character:
1. Chinese/English touch screen and HMI, PLC control system. Auger is drivn by servo motor.
2. Equipped with automatic can/bottle feeding system, implement to the functions of no-can-no-filling.
3. Open-door hopper, a frame type machine be designed the humanization to easily wash. Reasonable mechanical structure, easy to change size parts and clean up.
4. The functions of over-weight warning, error message display and failed packs detecting & deleting, which never let any reject to pass through, ensure the packing quality.
5. Max. 10 recipes can be saved for later using.
6. Have the functions of can support, vibration and dust extraction.
Technical Parameter:
Packing weight
|
10-5000g
|
Weighting range
|
1-6000g (with a resolution of 1 g)
|
Packing precision
|
≤ 1%
|
Packing speed
|
20-50 can /min
|
Power supply
|
380/220V 50-60 Hz
|
Power
|
2kw
|
Weight
|
500kg
|
Dimension
|
1750× 2700× 2300mm
|
Container Volume
|
dia 50-180mm height50-350mm, Cylinder containers with a diameter of 50-180mm and a height of 50-350mm |
LE Packaging Equipment Ltd, located in Shanghai China, is an SGS audited enterprise engaged in R&D. We specialized in packaging machine. Regular products are: Filling machine, Unscramble bottle machine, bottle washing machine, screw cap machine, labeling machine, aluminum foil sealing machine, printing machine, box machine and so on.
Non-standard packaging machinery equipment is available for us, actually the non-standard one is our main project, we can design, produce and test it for you and provide at least warranty. Products are widely applied in daily chemical, agricultural chemicals, oil, food, pharmaceutical and other industries.
We have a strong apacity to produce precision products, in order to improve the precision of what you want, we are equipped with the world advanced processing center, CNC lathes, large surface grinding machine, fast wire, wire, wire walking, and so on, these processing equipments can ensure the precision of machines' parts.
Our extensive experience of liquid & semi-liquid filling & packaging and container handling enables us to offer complete solutions to designs, manufactures, supplies, installs, maintains, troubleshoots, and upgrades plants for complete processing and packaging lines with special emphasis on bottling in glass, PET, Jar, can, and kinds of container
With a flexible approach, we are able to provide the right solutions for a diverse customer base, from small start up companies through to major national companies. Our many satisfied customers come from a very wide range of industries, including toiletries, cosmetics, pharmaceuticals, food, drink, household products and chemicals.
LE with ethos focus on after sale customer service, strive to achieve excellence, from our initial response to your enquiry to our after sales support and spares service.
