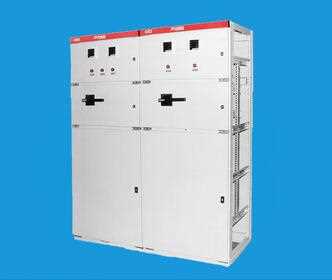

Factory supply GGD low voltage whole set electrical switchgear
GGD AC low voltage distribution cabinet is suitable for power plant, transformer substation, and industrial and mining enterprises etc., unsed in distribution system of AC 50Hz, rated working voltage 380v, rated current 3150A for powering, lighting and transferring, distributing and controlling the distribution devices.
Quick Details
Description
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: OEM/Sofielec
- Model Number: GGD
- Product Name: Factory supply GGD low voltage whole set electrical switchgear
- Rated voltage: 380V
- Protection degree: IP30
- Rated current (A): A 1000, B 600 (630), C 400
- Rated short-circuit breaking current: 15 kA
- Rated short-time withstand current: 15 (1s)(kA)
- Rated peak withstand current: 30 kA
- Ambient temperature: -5 to +40℃ and the average temperature below 35℃ in 24h
- Altitude: ≤ 2000m (indoor type)
- Humidity: ≤50% (+40℃); ≤90% (+20℃)
GGD AC low voltage distribution cabinet is suitable for power plant, transformer substation, and industrial and mining enterprises etc., unsed in distribution system of AC 50Hz, rated working voltage 380v, rated current 3150A for powering, lighting and transferring, distributing and controlling the distribution devices. High breaking capacity, good moving and heat stability, flexible scheme, convenient assembly, strong utility, new structure and high protectiondegree are the advantages of GGD. It can be used as replacement equipment for low voltage whole set switchgear.
GGD AC low voltage distribution cabinet meets the following standards: IEC439-1 "Low voltage Whole Set Switchgear and Controlling Equipment" and GB7251.1-2013 "Low Voltage Switchgear"
Operating Conditions
|
Protection degree
|
IP30
|
|
Ambient temperature
|
-5 to +40℃ and the average temperature below 35℃ in 24h
|
|
Altitude
|
≤ 2000m (indoor type)
|
|
Humidity
|
≤50% (+40℃), lower temperature with higher humidity; ≤90% (+20℃), mild condensation occasionally happens for the variations of the temperature.
|
|
The Inclination to the vertical plane is not more than 5°
|
|
It is applicable in the place without violet vibration and impulsion and corrosive pollution
|
|
Other special requirements need to be discussed when ordering.
|
Technical Data
|
Item
|
Rated Voltage (V)
|
Rated Current (A)
|
Rated Short-circuit breaking current (kA)
|
Rated Short-time Withstand current (1s)(kA)
|
Rated PeaK Withstand Current (kA)
|
|
GGD1
|
380
|
A 1000
B 600 (630)
C 400
|
15
|
15
|
30
|
|
GGD2
|
380
|
A 1500 (1600)
B 1000
C 600
|
30
|
30
|
63
|
|
GGD3
|
380
|
A 3200
B 2500
C 2000
|
50
|
50
|
105
|
