• Factory 4T 2 Post Vehicle Lift Equipment

Factory 4T 2 Post Vehicle Lift Equipment

1.Manual lock release from two sides; 2.Automatic arm restraints, Lifting arm automatically engages when lift is raised, and disengaged when lift lowered to the ground.

Product Details

Quick Details

Description

Design:Two Post
Type:Double Cylinder Hydraulic Lift
Certification:CE
Lifting Capacity:4000KGS
Lifting Height(mm):1800mm
Overall Width(mm):3370mm
Place of Origin:Shanghai, China (Mainland)
Brand Name:SAFE
Model Number:SF-C4000
Warranty:12 Months
COLOR:BLUE&GRAY
NAME:4T 2 POST HYDRAULIC CAR LIFT / Vehicle Equipment WITH CE

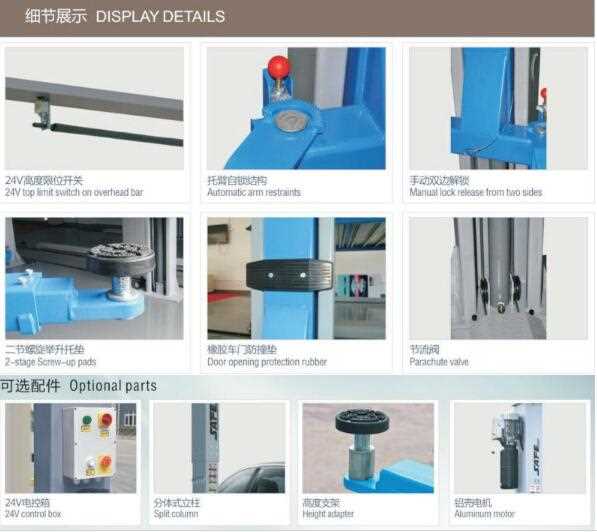

l  Manual lock release from two sides.

l  Automatic arm restraints, Lifting arm automatically engages when lift is raised, and disengaged when lift lowered to the ground.

l  2-stage Screw-up pads suitable for low chassis vehicle and makes easy and quick service.

l  Parachute valve that equipped in hydraulic joint ensures safety in case of oil hose broken.

l  24V top limit switch on overhead bar prevent damaging vehicle roof.

l  Door opening protection rubber as standard.

Packaging & Delivery
Packaging Details:(380 X 55 X 80CM) in 1 package( two post lift) ;(75X28.5X29CM) in 1 box (power unit)
Delivery Time:15-30days

Model

SF-C4000

SF-C5000

Lifting capacity

4000kg

5000kg

Lifting height

1800mm

1800mm

Min height

100mm

100mm

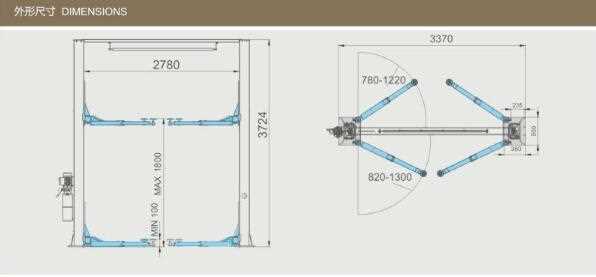

Height of post

3724mm

3724mm

Width between post

2780mm

2780mm

Mount width

3390mm

3390mm

Lifting time

55s

55s

Lowest time

50s

55s

Motor power

2.2kw

2.2kw

Power supply

220/240/380v/415v,1/3 phase

220/240/380v/415v,1/3 phase

Factory 4T 2 Post Vehicle Lift Equipment

Factory 4T 2 Post Vehicle Lift Equipment

Factory 4T 2 Post Vehicle Lift Equipment
