• FXBW Series Composite Pin Suspension Post Crossarm Insulator

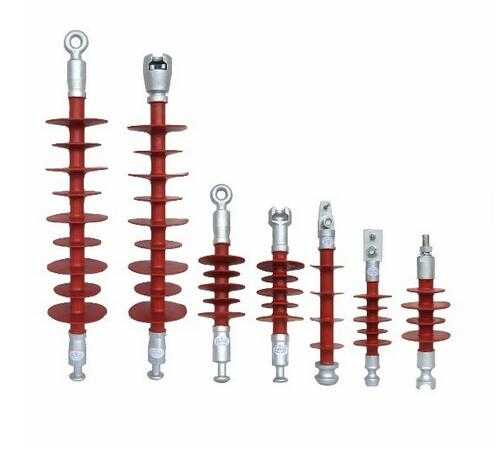

FXBW Series Composite Pin Suspension Post Crossarm Insulator

Composite suspension insulators: 220KV, 110KV, 100KV, 66KV, 36KV, 35KV, 25KV, 24KV, 21KV, 15KV, 12KV, 10KV, etc; Composite pin insulators: 10KV, 35KV; Composite rod post insulators: 1220KV, 110KV, 66KV, 36KV, 35KV, 24KV, 20KV, 15KV, 8KV, 6KV, 5KV, etc;

Product Details

Quick Details

Description

  • Model NO.: FXBW
  • Material: Composite Polymer
  • Type: a or B
  • Connection Method: Spherical Type
  • Color: Grey
  • Trademark: Cowinelec, OEM, ODM
  • Specification: Customizable
  • HS Code: 8546900000
  • Application: High-voltage
  • Structure: Post, Suspension, Pin,Crossarm Type
  • Usage: High Voltage Power Transmission
  • Size of Bearing Capacity: 160KN
  • Brand: Cowinelec, OEM,ODM
  • Transport Package: Carton
  • Origin: China, Zhejiang



Composite suspension insulators: 220KV, 110KV, 100KV, 66KV, 36KV, 35KV, 25KV, 24KV, 21KV, 15KV, 12KV, 10KV, etc
Composite pin insulators: 10KV, 35KV
Composite rod post insulators: 1220KV, 110KV, 66KV, 36KV, 35KV, 24KV, 20KV, 15KV, 8KV, 6KV, 5KV, etc
Composite cross-arm used insulators: 1240KV, 66KV, 36KV, 35KV, 33KV, 24KV, 15KV, 10KV, etc
Composite dry type wall bushings: 1110KV, 870KV, 470KV, 460KV, etc
Railway insulators: 25KV

We also special supply according to your specification, pls send us details.

Figure No.

Model

Rated Voltage

Specified Mechanical Load

Coupling Size

Section Length

Insulating length

Shed diameters

Shed Spacing

Grading Ring Diameter

Minimum Creepage

Full-Wave Impulse Withstand Voltage (Peak)

Wet Switching Impulse Withstand
(Peak)

1 Min Wet Power Frequency Withstand Voltage

Weight (for Reference)






kV


kN



H
mm

h
mm

d1/d1/d2
mm

B
mm

D1/D2/D3
mm

L
mm


kV


kV


kV


kg

1

FXBW-±1000/(420/400)

±1000

420/400

28

11000±50

10000

246/158/98

158

1600/600/400

40000

±4500

±2400

±1125

136

2

FXBZ-±800/(240/
210/180/160)

±800

240/210/
180/160

20

8700±50

8000

246/158/98

158

1120/560/232

31100

+3600

+1950

+900

115

3

FXBW-750/(120/100)

750

120/100

16

7150±50

6500

174/88

79

440/450/500

23800

2700

1800

1120

52

4

FXBZ-±660/(240/
210/180/160)

±660

240/210/
180/160

20

7800±50

7100

174/88

79

600

25800

+3200

+1800

+780

58

5

FXBZ-±500/(240/
210/180/160)

±500

240/210/
180/160

20

5440±50

4900

174/88

79

400

17600

+2550

+1550

+600

36

6

FXBW-400/(120/100)

400

120/100

16

3910±50

3300

171/85

79

370

12800

2250

1240

740

27

7

FXBW-330/(120/100
/70)

330

120/100/70

16

2990±40

2600

162/86

95

305/350

9400

1425

950

570

19

8

FXBW-220(230)/(120/100/70)

220/230

120/100/70

16

2240±30

1900

162/86

95

305/250

6800

1000



395

12

9

FXBW-110(115)/(120/
100/70)

110/115

120/100/70

16

1240±15

1000

162/86

95

250

3300

550



230

5.3

10

FXBW-69(66/63)/
(120/100/70)

69/66/63

120/100/70

16

940±15

740

162/86

95



2200

410



185

3.7

11

FXBW-15(12/11/10)/
(80/70/40)

15/12/11/10

(80/70/40)

16

340±3

163

150/115/80

50



400

95

60

400

1.4
