Quick Details
Description
- Type: Sealing Machine
- Condition: New
- Application: Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
- Packaging Type: Bags, Cartons
- Packaging Material: Paper
- Automatic Grade: Semi-Automatic
- Driven Type: Pneumatic
- Voltage: 220V/50HZ
- Power: 240W
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: PMG
- Model Number: FX-01
- Dimension(L*W*H):L1170*W850*H1350mm
- Weight: 120KGS
- Certification: CE ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas

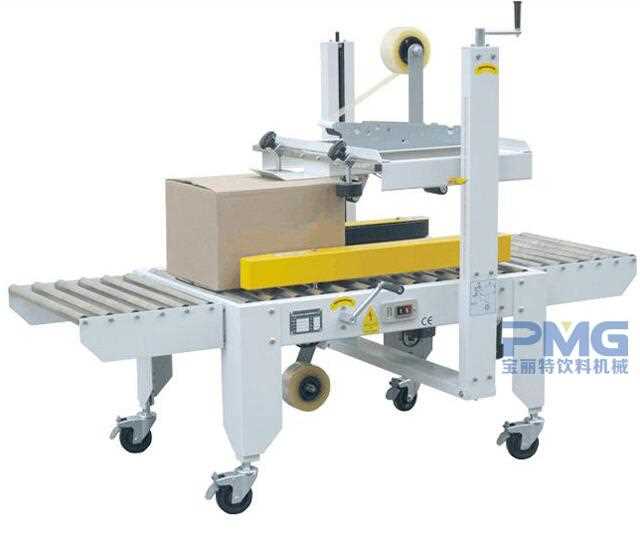

- Machine name: Semi Automatic Carton Sealing Machine / Carton Tape Sealer
- Maximum Packing Size:L300*W500*H500mm
- minmum packing size:L150*W160*H160mm
- Conveyor speed: 0-20m/min
- Tape width: 48/60/72mm
- Net weight: 120KG
Machine application:
The carton sealing machine is driven around in a standard on the basis of sealing machine.
The carton sealing machine is increased in the upper two belts, a total of three
motor drive, sealing up and down to ensure stable, fast, loading capacity of more
than 50kg suitable for heavy-duty,large-sized carton sealing.
Features:
1.Imported parts,electrical and pneumatic components;
2.Manually adjust the height and the width for different size of cartons;
3.left&right belts driven;
4.Cutter Safety system to prevent hands form stabbed by the cutter;
5.Both steel and stainless steel types;
6.Suit for cartons with side covers.
Techincal parameters :
|
Model
|
FX-01
|
|
Power
|
220V 50HZ 0.24KW
|
|
Machine dimension
|
L1170*W850*H1350mm
|
|
Net weight
|
120KG
|
|
Conveyor speed
|
0-20m/min
|
|
Tape width
|
48/60/72mm
|
|
Max. Packager size
|
L300*W500*H500mm
|
|
Min. Packager size
|
L150*W160*H160mm
|
|
Zhangjiagang PMG beverage Machinery Co., Ltd, We are the main manufacturer of beverage filling machine, and has 10 years experience of designing and development . We attend domestic exhibition every year and have may regular customer, and we supply best sales service in our industry.
Our Main products is Water Filling Machine, Carbonated-drink Filling Machine, Hot Filling Machine, Beer Filling Machine, 5-Gallon Barrel Filling Machine; Water treatment, RO Device, Blow Molding Machine, Shrink Labeling Machine, Sleeve Shrink Packing Machine etc;
You are welcome to visit us anytime. We will make our best products for you and give you best service for long term business.
