Quick Details
Description
- Type: Sealing Machine
- Condition: New
- Application: Machinery & Hardware
- Packaging Type: Cartons
- Packaging Material: Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: AC 220V/50Hz 110V/60Hz
- Power: 370W
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: CLPACK
- Model Number: FR-1100AL
- Dimension(L*W*H): 195*550*1100(mm)
- Weight: 125kg
- Certification: CE Certification
- After-sales Service Provided: Engineers available to service machinery overseas

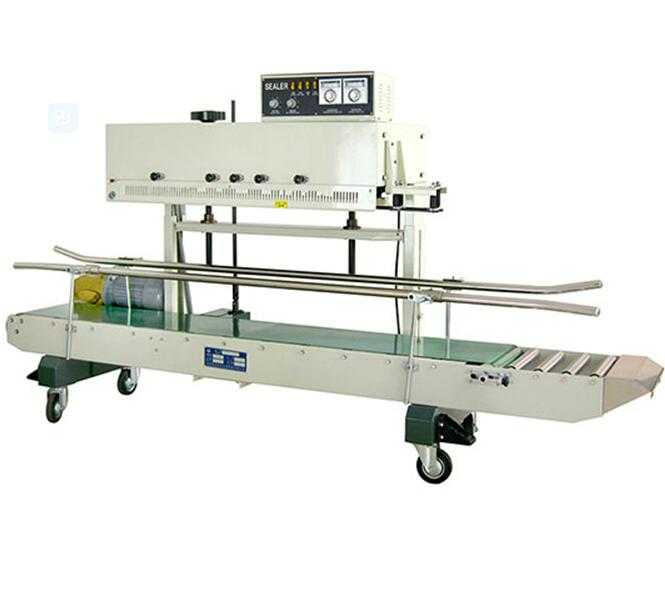

- Product name: FR-1100AL Series Automatic Continuous Band Sealer Sealing Machine
- Usage: sealing machine
- Model: FR-1100AL
- Warranty: One Year
- Sealing power: 300W*4
- Sealing Speed: 8m/min
- Sealing width: 8mm,10mm,12mm
- Temperature range: 0-300.C
- Printing Type: Solid ink
- Film thickness: <=0.10mm
Brief introduction:
FR-1100AL series automatic continuous band sealer is specially designed for vertical sealing. According to different carrying load, such machine is divided into two models: M and L, with max carrying load for single bag is 10 Kg and 25 Kg respectively. Moreover, the model FRM-1100 AL/M can also be equipped with solid-ink coding system for color printing.
Product parameters:
|
Model:
|
FRM-1100AL/M Solid-ink coding continuous sealer (Vertical type)
|
FR-1100AL/L Continuous band sealer (Vertical type)
|
|
Power supply voltage:
|
AC 220V/50Hz 110V/60Hz
|
|
Motor Power:
|
370W
|
550W
|
|
Sealing power:
|
300W*4
|
|
Sealing Speed:
|
8m/min
|
|
Sealing width:
|
8mm,10mm,12mm
|
|
Temperature range:
|
0-300.C
|
|
Printing Type:
|
Solid ink
|
|
Height of sealing Center to Conveyor :
|
320-580mm
|
450-700mm
|
|
Film thickness:
|
<=0.10mm
|
|
Conveyor Size:
|
1900X300(mm)
|
2400X350(mm)
|
|
Max. Conveyor load weight of single piece:
|
10kg
|
25kg
|
|
Overall conveyor loading weight:
|
30kg
|
75kg
|
|
Dimensions (L*W*H):
|
1950X550X1100(mm)
|
2430X740X1450(mm)
|
|
Weight:
|
125kg
|
230kg
|
Chuangling Packing Machinery Co., Ltd is located in the China`s economic center --- Shanghai, specializes in packaging machines
The company is engaged in packaging machinery research, development, production and sales of professional enterprise. The company has advanced production equipment and a dozen senior technicians. Over the years committed to new product development and research. Has over 10 series of packaging lines as well as more than 100 varieties of packaging machinery products was sold from home and abroad. According to market and customer need we customization all kinds of different specifications of the pipeline equipment, packaging machinery, pharmaceutical machinery and chemical machinery. Over the years, depend on extensive experience in the field of packaging machinery, and based on:"high-quality products, perfect service and reasonable price" business philosophy, won plenty of the users` trust. At the same time, the company all my colleagues' efforts, the company scale expands unceasingly. We has a long-term win-win cooperation with hundreds of well-known food, medicine and chemical enterprise in domestic and overseas, the customer base across all products to be streamlined, product packaging, carton forming, encasement, palletizing, sealing, vacuum packaging and printing date of production. At the same time, the company is expanding through the efforts of all colleagues in Chuangling.
Our aim is: based on the market, continuous innovation; rely on quality to survival; development in good faith; provide customers with excellent products and services, to achieve win-win situation.
We believe that "Pragmatism, Integrity, Creativeness and Excellence" spirit of Chuang Ling members and your trust will enable our to joint success!
