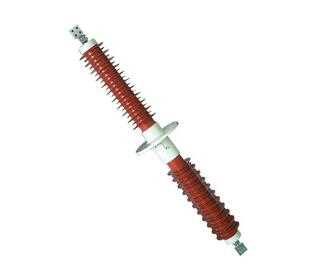

• FCGW-66/1600 Series 66kV 1600A composite polymer wall bushing

FCGW-66/1600 Series 66kV 1600A composite polymer wall bushing

P.F. withstand voltage (dry): 140kV; OEM production: Accept; Packaging: Wooden box 218x45x45cm;

Product Details

Quick Details

Description

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Abimat
  • Model Number: FCGW-66/1600
  • Type: Insulator
  • Material: Composite Polymer
  • Application: High Voltage
  • Rated Voltage: 72.5kV
  • Tensile Strength: 2000N
  • Nominal voltage: 66kV
  • Rated current: 1600A
  • Conductor: Aluminum
  • Discharge distance: 700/600mm
  • Creepage distance (Outdoors): 2300mm
  • Creepage distance (Indoors): 2100mm
  • Lightning impulse withstand voltage: 325kV
  • P.F. withstand voltage (dry): 140kV
  • OEM production: Accept
  • Packaging: Wooden box 218x45x45cm



Type

Rated voltage

Rated current

Nominal voltage

Creepage distance (Outdoors)

Creepage distance (Indoors)

FCGW-66/1600

72.5kV

1600A

66kV

2300mm

2100mm

FCGW-66/1600 Series 66kV 1600A composite polymer wall bushing

Company Profile

Zhejiang Abimat Electric Co., Ltd. is a manufacturer of Dropout Fuse Cutout, Lightning Surge Arrester and Insulator.
We have over 30 years OEM experience and over 18 years experience on high voltage products. We own a professional mould designs team, a foundry workshop, a stamping workshop and three other workshop.
With continuously importing various internationally advanced production equipments and complete test equipment, sets us aside from others and gives us the total control to ensure a quality product and on-time deliveries whatever the demand may be.
