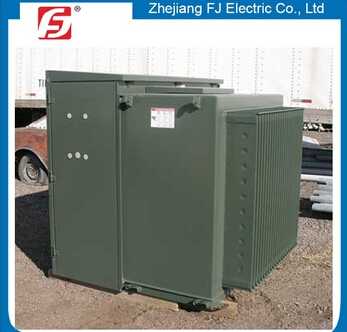

Europe market ONAN liquid filled three phase 300kva pad mounted transformers
This transformer is beautifully designed accords to international standards. we can produce all kinds of transformers, pls contact me to discuss more
This series transformer adopt silicon steel sheet iron core which is made of excellent low loss crystal granule. They have the merit of low no-load loss, small no-load current and low noise.
1. The height of sea level is less than 1000m.
2. Highest temperature 40ºC
3. Lowest temperature: -20ºC
4. Maximum daily average temperature: 25ºC
5. Maximum annual mean temperature: 20ºC
6. The relative humidity is less than 95%(when the sir temperature is 25ºC)
7. Install at the site with dust methane, but no explosion water
8. Power supply voltage profile approximate to sine wave
| Rated capacity |
Voltage Combination |
Connection symbol |
Loss(KW) |
No-load current (%) |
Impedance voltage (%) |
Weight (Kg) |
| (KVA) |
High voltage (KV) |
High voltage tapping range |
Low voltage (KV) |
Load |
No-load |
Oil weight |
Overall weight |
| 30 |
10kv
to
35kv
|
±5%
or
±2*2.5%
|
0.4 |
Yyn0
or
Dyn11
|
0.6 |
0.13 |
2.3 |
4 |
75 |
295 |
| 50 |
0.87 |
0.17 |
2 |
88 |
395 |
| 63 |
1.04 |
0.2 |
1.9 |
95 |
420 |
| 80 |
1.25 |
0.25 |
1.9 |
103 |
480 |
| 100 |
1.5 |
0.29 |
1.8 |
115 |
540 |
| 125 |
1.8 |
0.34 |
1.7 |
130 |
645 |
| 160 |
2.2 |
0.4 |
1.6 |
145 |
740 |
| 200 |
2.6 |
0.48 |
1.5 |
175 |
885 |
| 250 |
3.05 |
0.56 |
1.4 |
195 |
1010 |
| 315 |
3.65 |
0.57 |
1.4 |
230 |
1205 |
| 400 |
4.3 |
0.8 |
1.3 |
255 |
1375 |
| 500 |
5.1 |
0.96 |
1.2 |
285 |
1620 |
| 630 |
6.2 |
1.2 |
1.1 |
4.5 |
350 |
1960 |
| 800 |
7.5 |
1.4 |
1.1 |
405 |
2310 |
| 1000 |
10.3 |
1.7 |
1 |
490 |
2690 |
| 1250 |
12 |
1.95 |
1 |
550 |
3315 |
| 1600 |
14.5 |
2.4 |
0.8 |
625 |
3985 |
| 2000 |
18 |
2.6 |
0.7 |
745 |
4520
|
| power capacity(kva) |
HV(KV) |
LV(KV) |
noload loss(KW) |
load loss(KW) |
noload current(%) |
short-circuit impendace(%) |
weight(kg) |
dimension(mm) |
| 30 |
33
35
36.5
38.5
|
0.4 |
0.15 |
0.84 |
1.9 |
6.5 |
550 |
1320x550x1550 |
| 50 |
0.19 |
1.15 |
1.8 |
695 |
1360x700x1520 |
| 80 |
0.25 |
1.71 |
1.7 |
830 |
1395x730x1680 |
| 100 |
0.26 |
1.92 |
1.6 |
955 |
1440x760x1760 |
| 125 |
0.31 |
2.26 |
1.5 |
1065 |
1450x800x1900 |
| 160 |
0.32 |
2.69 |
1.4 |
1295 |
1470x800x1950 |
| 200 |
0.39 |
3.16 |
1.4 |
1470 |
1500x800x2000 |
| 250 |
0.46 |
3.75 |
1.3 |
1665 |
1530x830x2040 |
| 315 |
0.55 |
4.53 |
1.3 |
1820 |
1550x870x2100 |
| 400 |
0.66 |
5.47 |
1.2 |
2115 |
1600x940x2150 |
| 500 |
0.77 |
6.58 |
1.1 |
2520 |
1750x1000x2230 |
| 630 |
0.94 |
7.88 |
1 |
3030 |
2130x950x2350 |
| 800 |
1.11 |
9.41 |
0.9 |
3430 |
2210x1075x2400 |
| 1000 |
1.3 |
11.54 |
0.9 |
4060 |
2250x2145x2650 |
| 1250 |
1.58 |
13.94 |
0.8 |
4610 |
2210x1740x2640 |
| 1600 |
1.91 |
16.67 |
0.6 |
5720 |
2250x2145x2650 |
| 2000 |
2.35 |
20.43 |
0.5 |
6165 |
2320x2170x2700 |
| 2500 |
2.84 |
21.85 |
0.5 |
6760 |
2340x2180x2450 |
