Quick Details
Description
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: EBASEE
- Model Number: EBS1W
- Type: Vacuum
- Poles Number: 4
- Pole: 3P, 4P
- Frame rated current Inm (A): 63~800
- Standard: IEC60947-1, IEC60947-4-1, IEC60947-2
- Rated current In (A): 400~6300
- Rated voltage Ue: 1000

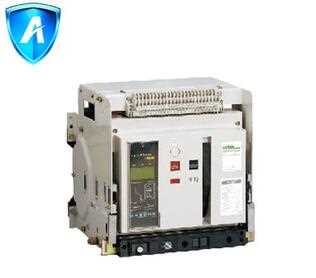

- Product name: Air Circuit Breaker
Features:
compact structure
high breaking capacity
no arcing distance and high saftey
with complete and reliable intelligent protection functions
integration communication, compatible to many protocols
simple installation, horizontal or vertical connection for main circuit
many accessories are available
Operating conditions:
ambient air temperature: -5℃~+40℃
average temperature in 24 hours: +35℃
altitude: less than 2000m
relative humidity: less than 50% at 40℃, higher relative humidity is allowed at lower temperature.
Technical Data:
Rated Current In (A): 400~6300
Rated Current of N-pole :100%In
Frame rated current Inm (A) :63~800
Rated Insulation Voltage Ui (V):1000
Ultimate breaking capacity Icu AC 400V (kA) :80, 100, 120
Rated service breaking capacity Ics AC 400V (kA) :50,80,100
Rated short time withstand current 1S Icw(kA):50, 65, 100
Rated service voltage Ue(V) :AC690
Making time (ms) :30
Breaking time (ms) :60
Poles: 3, 4
Electrical life (times): 500
Mechanical life with maintenance (times): 10000, 8000
|
The Gross weight
|
|
|
The dimension
|
|
|
M.O.Q
|
1pcs
|
|
Payment term
|
T/T, L/C,D/P,O.A
|
|
Delivery time
|
Usually 25 days (Negotiable for different order quantity)
|
|
Promote the products with our own brand (As one of our agents in your market)
|
|
Promote the products with neutral packing
|
|
Do OEM for you.
|
