Quick Details
Description
Model NO.: 208C
Lifting Capacity: 4T
Certification: CE
Double Cylinder Lift Type: Planer-type
Brand: Peak
Lifting Time: 45 Seconds
Motor: 2.0/3.0HP
Color: Blue
Trademark: PEAK
Specification: 9000LBS
HS Code: 8425429000

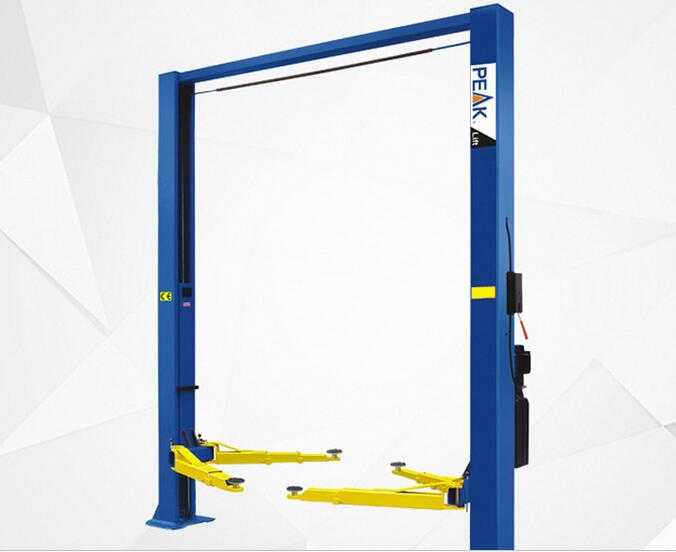

Type: Double Cylinder Hydraulic Lift
Driving Type: Hydraulic
Driving Motor Number of Mechanical Lift: 1
Condition: New
Design: Two Post
Surface Treatment: Spray-Paint
Transport Package: Iron Bracket
Origin: Foshan, China
| Lifting Capacity |
4.0T (9,000lbs) |
| Lifting Time |
45 Seconds |
| A |
Lifting Height |
1815-1917mm (71 1/2" - 75 1/2") |
| B |
Overall Height |
3602mm(141 3/4") |
| C |
Overall Width |
3390mm(133 1/2") |
| D |
Drive-Thru Clearance |
2554mm(100 1/2") |
| E |
Width Between Columns |
2780mm(109 1/2") |
| F |
Minimum Pad Height |
90mm(3 1/2") |
| Gross Weight |
630kg(1,338lbs) |
| Motor |
2.0/3.0HP |
| Packing Dimension |
3655 X 450 X 750 mm |
| QTY of Container |
15 Units/20'GP |
| 40 Units/40'GP |
PEAK corporation is located in Foshan ( near Guangzhou, China) has over 15 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.

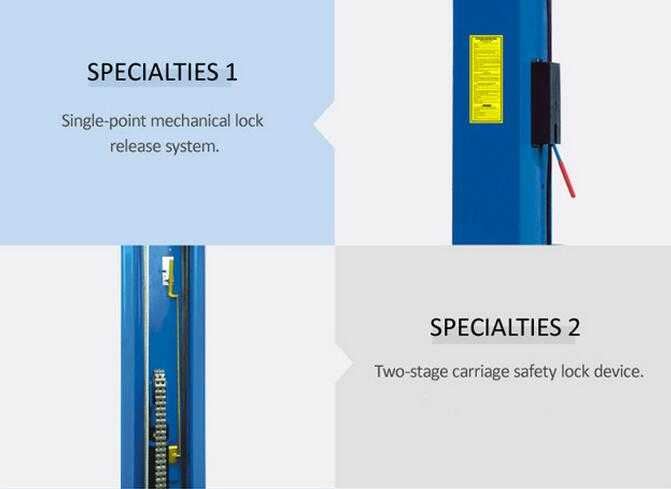

PEAK designs its products to include features for the market demand today. Some of the technical in no vations include our Super-symmetric® , single-point safety release systems (two locks, one release), 2-dual synchronous cylinders, hydraulic lock scissors lift and many more.
PEAK has many advanced equipment such as imported NC cutting machine, automatic welding machine and CNC machining center etc. In 2014 PEAK establish new Hydraulic Department to research and produce the hydraulic parts ourselves.

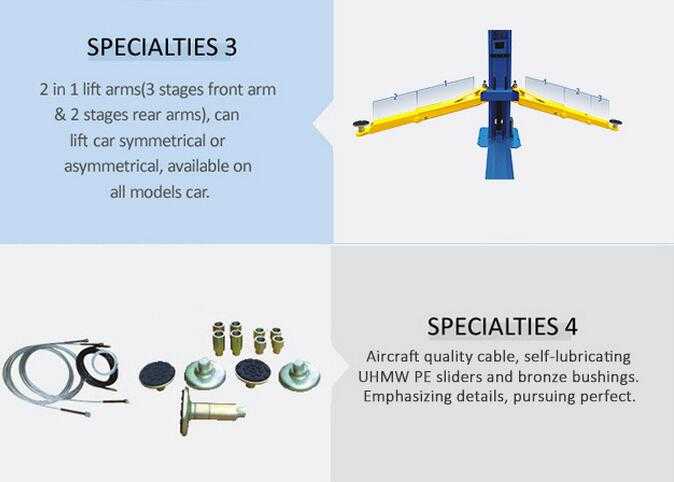

At PEAK we pay strict attention to product design, manufacturing, testing and after sales support. The parts we choose and produce are on the principle of the best, such as high quality Cylinders designed and manufactured on ANSI standard, Self-lubricated sliders and Bronze bush, Aero-cables, Powder coating and strictly heat treatment technology, and so on.
PEAK employs certified welders and professional engineers to follow a strict quality control process to meet many of the world's certification requirements.
Each PEAK lift is designed for customers who seek the world-class products!
