Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Beverage, Chemical, Commodity, Food, Medical
- Packaging Type: Bags, Barrel, Bottles, Cans, Capsule, Pouch, Stand-up Pouch
- Packaging Material: liquid or viscous liquid
- Automatic Grade: Semi-Automatic
- Driven Type: Pneumatic
- Voltage: AC220/110V
- Power: 0
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Shifeng
- Model Number: SFGY-500
- Dimension(L*W*H): 1200x295x680mm
- Weight: 20.5kg
- Certification: ISO9001:2000
- After-sales Service Provided: No overseas service provided
- Filling range: 50~500ml
- Ideal filling range: 200~500ml
- Air pressure range: 4~6kg/sqcm
- Filling speed: 0-50 bottles/min
- Filling accuracy: ≤±1% liquid
- Dimensions of mainframe:1100x380x480mm
- Package size: 1285x335x280mm
Technical Data:
|
Items
|
SFGY-60
|
SFGY-120
|
SFGY-250
|
SFGY-500
|
SFGY-1000
|
SFGY-2500
|
SFGY-5000
|
|
Fillable range
|
5-60ml
|
10-120ml
|
25-250ml
|
50-500ml
|
100-1000ml
|
200-2500ml
|
500-5000ml
|
|
Air pressure range
|
4-6kg/cm2
|
4-6kg/cm2
|
4-6kg/cm2
|
5-8kg/cm2
|
5-8kg/cm2
|
5-8kg/cm2
|
5-8kg/cm2
|
|
Filling speed
|
0-50bottles/min
|
0-50bottles/min
|
0-50bottles/min
|
0-50bottles/min
|
0-50bottles/min
|
0-30bottles/min
|
0-15bottles/min
|
|
Filling precision
|
1%
|
1%
|
1%
|
1%
|
1%
|
1%
|
1%
|
|
Net weight
|
14kg
|
15kg
|
20kg
|
20.5kg
|
26kg
|
35kg
|
53kg
|
|
Gross weight
|
16.5kg
|
18.5kg
|
22.5kg
|
25.5kg
|
|
|
|

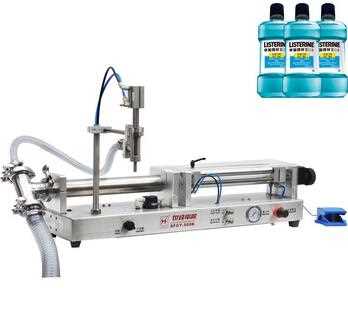

SFGY-500 Pneumatic Semiautomatic Liquid Filler
Feature:
1. suitable for filling viscosity liquid like shampoo, lotion, perfume, oil, beverage, water, etc
2. can fill all kind of containers such as bottles, cans, cups, etc
3. Full pneumatic control, easy to operate, remove and clean; ideal equipment for filling inflammable, explosive materials
4. liquid contacted material use 316L stainless steel, other metals are made of 304 stainless steel with surface finishing and special treatment which guarantee you very good quality
5. equiped with Airtac cylinder, high filling precision
6. double filling heads, higher filling capacity
Application:
1) Can fill shampoo, lotion, oil, juice, perfume, ink, water, etc for all containers such as bottles, jars, cans, etc
2) Widely used in cosmetic, drinks, chemical, medical, food industry etc, which can highly improve productivity and product quality.
Packaging including:
Main machine × 1 pcs
Steel silicon pipe × 2 pcs
Fuse × 3 pcs
User manual ×1 pcs
Quality card × 1 pcs
