Description
DTSD5-M, a multi-functional three-phase static electricity meter. It is developed under the ongoing technology evolution in the commercial & industrial sector and in order to meet the growing customer demand for static meters.
It gives advantages to all users in the process: an installer, a maintenance engineer, a service engineer, a readout operator and a final user. The meter is approved and manufactured in compliance with the IEC 62052-11, IEC 62053-21 (IEC 61036) standards, and was designed according to even higher internal PAX standards.
.png)
Reliability and stability
With proven electronic technology, long-life components and special care in the manufacturing process, DTSD5-M guarantees precise accuracy and high reliability throughout its life span. Re-calibration is no longer necessary.
Fast and Easy Installation procedure
This design is easy to handle and extremely efficient for large-scale residential installations. Adapted to current connection standards the meter is compatible with existing installations and test benches.
Local metering data display (LCD):
Automatic Scroll mode
Manual scroll (by button)
Test mode (for utilities)
Programmable data set and sequence
LCD back-light: optional
LCD display when power absent: optional
Flexible Tariff Management
Benefit from an internal RTC, full Time of Use (TOU) function is realized.
A tariff program is managed by the RTC which is suitable for the most complex metering applications.
The meter is able to generate “End of Period” information as defined by the user, usually based on billing dates.
The non-volatile memory is able to save energy information for up to 12 billing periods. This removes the need to visit the meter on a frequent basis.
DTSD5-M supports 4 kinds of tariffs and 12 intervals in 24 hours for each day, which can be programmed flexibly. Interval 1 to 12 of each day can be combined with tariff 1 to 4 according to various requirements, this combination is called Tariff Set.
In addition, the meter supports holidays & weekends, which can be individually set with different kinds of combination of tariffs and intervals.
Maximum Demand information can also be measured for all tariff rates allowing optimum billing of high consumption customers in particular.
Events log & Alarm
-Over voltage and under voltage
-Over current and under current
-Reverse energy flow
-Phase rotation
-Demand overload
-Low battery
-Programme events
-Open of terminal cover and meter cover
-Occurrence of power on & off, duration of back-up battery working
Anti-Tamper Features
-Measures the absolute sum of total and export energy
-Optional abnormalities alarms & logs
-Independent sealing of the meter body and terminal cover
-Not programmable via keyboard
Load Profile
The meter has 6 load profile channels which can store optional data for up to 16M capacity. And the interval length can be set from 1 to 60 minutes.
Instantaneous Value
DTSD5-M Measures all kinds of parameters:
kW sum of phases and per phase
kvar sum of phases and per phase
kVA sum of phases and per phase
Frequency per phase
Power factor
Current per phase
Voltage per phase
Freezing Function
The meter has optional function to freeze appointed variable parameters at the appointed time. Operators can read out these parameters to analyze.
Self-diagnostic
Meter parameters need to be set for the first time usage when out of factory. Instead, LCD will have an indication if the parameters are not integrated
Meter will check the hardware operating well every time when power on again, and will alarm for accidental faults.
Full functional PC software
Running under Microsoft Windows environment
Full reading and setting function via optical port or Rs485 port.
Three security levels for operators:
- administrator
- setting & reading
- reading only
Printed the programmed parameters selected by user
Data output & analysis
Hangzhou PAX Electronic Technology Co., Ltd. is a wholly-owned subsidiary company of Hi Sun Technologies (China) Co., Ltd who is publicly listed in HK stock market (stock code:0818HK). The company is specializing in developing and manufacturing static electricity meters & metering system solutions since 1990’s.

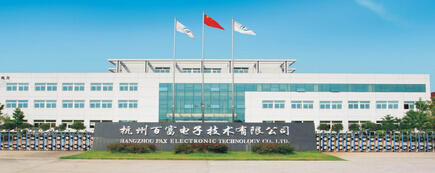

Hangzhou PAX Electronic Technology Co., Ltd. (for short "PAX"), is with headquarter in HANGZHOU downtown, the famous "Yellow Dragon Business Center", and the manufacturing factory located in Hangzhou Economic & Technological Development Zone, and now get total staff 737 out of which, 40% are junior college or above educated. And with much honor, the company is listed on Forbes in both year 2005 and year 2006 as one of the hundred potentials of China.
As a leading enterprise in the China’s electronic field of measuring instruments, the company has been focusing on the high-end market of this field and dedicating to developing electronic energy meter & relevant automatic systems with high technology.
The products were praised and considered as famous ones in year 2004 after well trusted by grids on its quality,and the products were praised as “National Inspection-free Product”in2007.
PAX has already formed an integrated chain as followings: single-phase/ three-phase energy meter, single-phase/ three-phase multi-tariff energy meter,single-phase/ three-phase prepayment energy meter, single phase PLC energy meter, three phase multi-functional energy meter, load management terminal, power load management terminal system, substation data management system, distribution data management system, residential data management system, PDA energy metering calibration system, and so on, can offer the energy customer the best and customized energy metering products and system solution.
Qua national key high-new technology enterprise and the technological centre of provincial enterprises, the company owns independent intellectual property rights of all products. Meanwhile, the company has taken part in drafting and revising 11 national or industrial standards successively. Many products have obtained PTB, KEMA and MID certificates. At the same time, PAX is the vice president of China Instrument & Metering Industry Association, has participated 13 projects of National and Industrial Standards making and revising.
In addition, on the basis of relying on academic advantage of universities, adopting the integration of industry, study and research, the company, with the cooperation of Zhejiang University, establishes Innovative & Practical Base for Electronic Designing and Zhejiang University Electrical Engineering Postdoctoral Station as Pax Studio, which provides a broad platform to the research & application of frontier-technique.
In 2006, the company has formally made a strategic partnership with GE (General Electric Company) and this helps Pax much to promptly absorb & adopt overseas advanced experience on technique & management, and to promote core competitive power.
At present, the company’s annual production capacity reaches 3.6million meters. Sales has covered all over the country and spread to overseas market like in EU, southeast Asia, Russia, Middle East, etc,. Long-term cooperation is also under discussion with the partners in many countries.
To the goal of being the world first-class supplier on energy metering products and relevant automated systems, Pax is striding steadily.
