Description

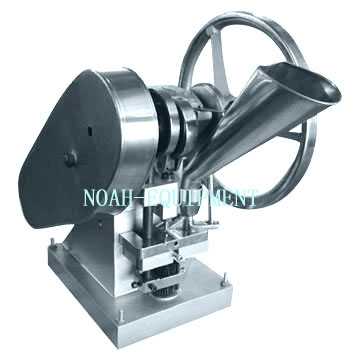

This machine is widely used for pharmacy, chemical, food, and metallurgy industry. It can press round or irregular tablets from various granular materials. As its feature; high precision of filling, low-noise, low-consumption of material, and it works smoothly. The minimum consumption of lab material is just 200g. It is a good machine for research & development in lab at hospital and plant, used to small-scale production.
Main characteristic :
|
Design of GMP
|
|
Output is adjusted by frequency converter
|
|
High precision of filling
|
|
Operating reliably and low noise
|
|
Lower consumption of material
|
Technical Data:
|
ITEM
|
DP30A
|
|
Punch stations(set)
|
1
|
2
|
3
|
|
Tablet diameter (mm)
|
4-20
|
4-10
|
4-7
|
|
Max. main operation pressure(KN)
|
30
|
30
|
30
|
|
Max depth of fill (mm)
|
16
|
16
|
16
|
|
Max tablet output(tablets/min)
|
60
|
120
|
180
|
|
Power of main motor (KW)
|
0.55
|
|
Power
|
1p Ac220V,50Hz
|
|
Overall dimension (mm)
|
708*459*740
|
|
Weight (kg)
|
160
|
