Quick Details
Description
- Type: Wrapping Machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
- Packaging Type: Bags, Barrel, Belt, Bottles, Cans, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
- Packaging Material: Wood
- Automatic Grade: Semi-Automatic
- Driven Type: Electric
- Voltage: 110,220V
- Power: 110,220V/50-60Hz
- Place of Origin: China (Mainland)
- Brand Name: XINDAIKE
- Model Number: DBA-130A
- Dimension(L*W*H): 1860*560*1500mm
- Weight: 140Kg
- Certification: ISO
- After-sales Service Provided: Overseas service center available
Rapid speed: 2.0sec/per cycle, 30cycles/per min
Easy Maintenance: No Greasing, Mechanism is stable and durable, Easy operation
Table Height: 450mm(customer-made height is available)
Easy loading or unloading: To load or unload the strapping roll is convenient due
to the dispenser is placed outside
Packing type: Parallel 1 to several strips, in type of orders to pack, manual
operation, continual packing, ball switch & pedal switch.
Electric appliance adopted: "LG" PLC control, and "TE" and Japanese"Omron"and"ZIK"(AP8060L)

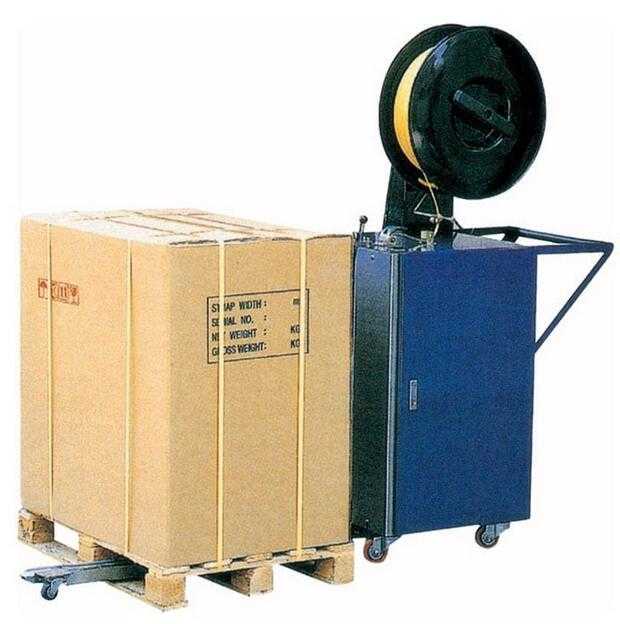

Easy strap feeding through pallet(DBA-130A)
Elimates troublesome by hand tool(DBA-130A)
Optional: any arch size(AP8060L), Chute size L1200mm or Longer one(DBA-130A)
|
Model
|
DBA-130A
|
|
Strapping tension
|
100-600N adjustable
|
|
Strapping speed
|
2.0Sec./Strap
|
|
Strap width
|
9-15mm
|
|
Chute size
|
L1000mm
|
|
Power supply
|
110,220V/50-60Hz
|
|
Power consumption
|
0.5KVA
|
|
Machine size
|
1860×560×1500mm
|
|
Machine weight
|
140Kg
|
We are Trading company with long history and experience in the field of packaging & filling machines.
we supply best quality with competitive price for booth wholesale and end users
we can design special packaging & filling machines to meet our customer demands.
we export packaging machinerys to different areas such as USA , Europe , Middle east & Gulf Area
we supply you with the necessary spare parts for your machinery at any time with good prices
