Customized PVC Window and Door Profile Extruder Machine
This pvc panel machine can be used to manufacture window profile, door profile, ceiling and wall panels, and other irregular shape profile widely used in home internal decoration.
This machines for pvc door panels can be designed according to the requests of clients.

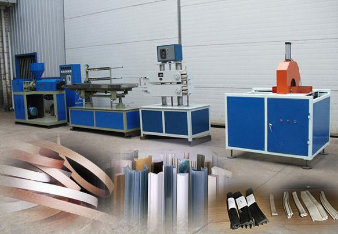

This machine for produce pvc wall panel consists of SJ-65/25HY extruder, vacuum platform, 1.5m track drawing machine, automatic cutting machine, mold, stacking rack.
The machine for producing pvc panel are consisted of extruder, water tank/vacuum platform, haul off unit, cutter.
The pvc panel manufaturing machine is supplied by factory directly with a competitive price.
pvc ceiling making machines
machine for produce pvc wall panel
pvc panel extrusion machine
pvc profile extruder machine
pvc window and door profile extrusion machine
pvc ceiling panel machine
pvc window and door profile machine
PVC panel making machine
pvc doors and windows making machine
pvc profile extrusion machine
Application

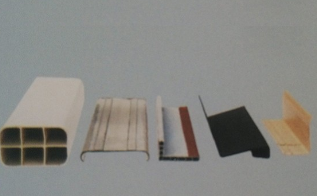

The profile production line is used for UPVC windows and doors profile, soft PVC sealing strip. Corner bead with creased Reinforce FlangeProviding straight corners with wave margin and nail hole. Used over irregular surfaces. Plaster keys near nose for reinforcement where needed most. Corner Bead in plaster of engineering can be formed on the corner straight line against rupture or cracked, And protect the most vulnerable parts, mortar wing in it's network of any side, Can be reliably corner straight line uplift with plaster into all the depth.
![Customized PVC Window and Door Profile Extruder Machine]()
![Customized PVC Window and Door Profile Extruder Machine]()
![Customized PVC Window and Door Profile Extruder Machine]()
![Customized PVC Window and Door Profile Extruder Machine]()
![Customized PVC Window and Door Profile Extruder Machine]()
![Customized PVC Window and Door Profile Extruder Machine]()
Application :
This kind of extruder has wide application . adopt different screw structure types, installed with siutable die head and downstream equipments, can produce all kinds of polymer products, can produce from HDPE, PP, ABS, PVC, PET, PC, PS and other plastics material to pipes, profiles, sheets and granules
Specifications
plastic extruding machine
1.High capacity
2.Long life
3.High speed extrusion
4.Low energy consumption
The characteristics:
1) Installed with imported termo controllers, imported inverters or converters.
2) Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3) For the material feeding section of barrel there’re slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
4) Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.
5) We also can provide a variety of exhaust-type extruder
Customer choice:
Main technical parameter:
|
Mode
|
Screw Dia.
|
Length to
diameter
|
Rotational
Speed of screw
|
Height of center point
|
Capacity
|
Power
Drive motor
|
|
SJ-3-/25CY
|
30mm
|
25:1
|
10-160r/min
|
1000mm
|
19.5kg/h
|
2.2kw,3kw
|
|
SJ-45D
|
45mm
|
20:1
|
10-90r/min
|
1000mm
|
22.5kg/h
|
5.5kw
|
|
SJ-45/25CY
|
45mm
|
25:1
|
16-160r/min
|
1000mm
|
35kg/h
|
7.5kw,11kw
|
|
SJ-45/28CY
|
45mm
|
28:1
|
16-160r/min
|
1000mm
|
40kg/h
|
7.5kw,11kw
|
|
SJ-45/25HY
|
45mm
|
25:1
|
16-160r/min
|
1000mm
|
35kg/h
|
11kw
|
|
SJ-50/25HY
|
50mm
|
25:1
|
16-160r/min
|
1000mm
|
40kg/h
|
11kw,15kw
|
|
SJ-65/25HY
|
65mm
|
25:1
|
8-80r/min
|
1000mm
|
100kg/h
|
18.5kw
|
|
SJ-65/28CY
|
65mm
|
25:1
|
15-120r/min
|
1000mm
|
100kg/h
|
18.5kw,22kw
|
|
SJ-65/28HY
|
65mm
|
28:1
|
16-160r/min
|
1000mm
|
120kg/h
|
22kw,30kw
|
|
SJ-65/30CY
|
65mm
|
30:1
|
15-120r/min
|
1000mm
|
120kg/h
|
22kw,30kw,37kw
|
|
SJ-65/34CY
|
65mm
|
34:1
|
15-120r/min
|
1000mm
|
120kg/h
|
22kw,30kw,37kw
|
|
SJ-70/25HY
|
70mm
|
25:1
|
8-80r/min
|
1000mm
|
120kg/h
|
22kw
|
|
SJ-90/25HY
|
90mm
|
25:1
|
10-100r/min
|
1000mm
|
155kg/h
|
30kw,45kw,55kw
|
|
SJ-120HY
|
120mm
|
25:1
|
30-90r/min
|
1000mm
|
250kg/h
|
75kw
|
Our Services
If you are interested in our machines, please do not hesitate to contact us.
Hope we can succeed in cooperation and establish a long term business relation.
FAQ
Q: Your company is a trading company or an industrial manufacture factory?
A: We are an industrial manufacture factory. We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 300 set per year.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: Please offer the following information, so we can give you price and our advice as manufacturer:
1. Type of pipe you want to produce.
2. Raw material and its types
If you can also send us photos of your samples, it would be highly appreciated.
