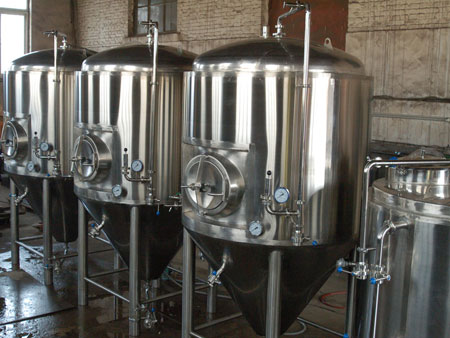

We supply customized beer fermenters with capacity from 2HL to 200HL, which could be shipped inside containers. Furthermore, we can also build bigger size fermenters on site.
.jpg)
Typical specifications of uni-tank fermenters with capacities less than 100hl are as the followings:
- Max. Working Pressure: 2 Bars
- Design pressure: 3 Bars
Construction
- At least 25% excess headspace
- Vertical cylinder & cone bottom shape
- Dished top head (3mm thick S.S.304 sheets)
- 60 cone bottom
- Inside side and bottom finish: 3mm thick S.S.304 sheets, 2B quality original surface, welds polished to 2B quality, pickled,
- Dimpled glycol jackets on side and bottom: 1.5mm thick S.S.304 sheets;
- Insulation: 70mm thick Polyfoam jackets on the side and bottom
- Cladding finish: 2 mm thick S.S.304 sheets, frosted surface
- 2 lifting eyes on the top head for convenient moving
- 4 complete S.S.304 legs with adjustable footpads and horizontal cross bracing
- Side mounted S.S.304 fabricated swing-in & lift-out ellipse manway with fastening handle
Fittings
- All of them are adopted and installed according to professional design for customers’ convenient operation
- Thermo-well: pocket (S.S.316) and boss (Aluminum alloy, powder sprayed)
- PT100 thermal sensor interlock with solenoid valve on the glycol inlet
- One rotating sanitary S.S.304 CIP spray ball on inner head with down-tube and fittings integrated (Tri-clamp 1”)
- Butterfly valve (Tri-Clamp 1.5”) on the CIP down-tube
- One sampling cock placed on lower place of the side (Tri-clamp 1” connecting)
- Manometer
- Breathing valve for pressure relief and Anti-vacuum: fixed relief pressure, e.g. 2 Bars, Sanitary, S.S.304 fabricated, mounted on the top head,
- 1 sanitary manual butterfly valve (Tri-Clamp 1.5”) on the bottom of the cone part for wort inlet, beer outlet, cropping yeasts and drainage
- 1 sanitary manual butterfly valve (Tri-Clamp 1.5”) on the side of cone for beer outlet
- Convenient removable design: Installation of all fittings designed for operators’ convenience of external assembly / disassembly for cleaning and replacing purpose, etc.
- Glycol inlet / outlet
- Automatic pressure control: Mechanical bunging pressure regulator
Our company is the leading supplier for craft beer industry. As professional contractor of brewing systems of various sizes and configurations ,we can design and build complete turnkey industrial-style craft breweries to your specifications and future expansion.We are able to supply micro breweries or pub breweries from 1 to 10hl brew batch size and industrial breweries of up to 1,000,000hl per year (also was called as 100,000 tons per year). Breweries’ reliable performance is guaranteed with our deep experience of 30 years in building turnkey big breweries and proven brewing technology in various big and small breweries around the world.
Being professional at realization of your brewing business plans, we are very able at these aspects of turnkey project and so on:
- Feasibility Study;
- Offering proposals;
- Customized design and manufacture;
- Installation, commissioning and training at site;
- Maintenance;
- Extending output and upgrading techniques for old brewing systems;
- Transferring recipes and customized taste-adjusting;
- Raw material sourcing
